3064 Series F1.8 Large Aperture HD CMS Lens
CMS Lenses are equipped with large apertures to provide clear and bright images in various lighting conditions, improving driving safety. In particular, the advantage of large apertures is more obvious in nighttime or dark environments.
There are other factors to affect CMS lenses performance
Focal length: Determines the field of view and magnification of the lens.
Resolution: Affects the sharpness of the image.
Distortion: Affects the geometric shape of the image.
These parameters collectively determine the imaging quality of the electronic rearview mirror.
| Model：OKS-3064-A60-L650# |
| Optical Specifications |
| NO. | Items | Description |
| 1 | F No. | F1.8±5% |
| 2 | Focal-Length | 6.0MM±5% |
| 3 | OpticalBack Focal Length | 6.57MM±0.3 |
| 4 | Flange Back Focal Length | 5.23±0.3 |
| 5 | MAX Image Circle | θ6.4 |
| 6 | Lens Structure | 6 Glass+IR |
| 7 | Mount Type | M12*0.5 |
| 8 | FOV | sensor | H | V | D |
| 1/2.6" OX03C10 1920*1280 | 56° | 36° | 70° |
| 1/2.42"ISX0311920*1536 | 56° | 45° | 75° |
| 9 | Distortion | -8.40% |
| 10 | CRA | <17.8deg |
| 11 | TTL | 22.32MM |
| 12 | Focus Range | Focus range is 0.6M~Infinity |
| 13 | Operating Temperature | -40℃~+85℃ |

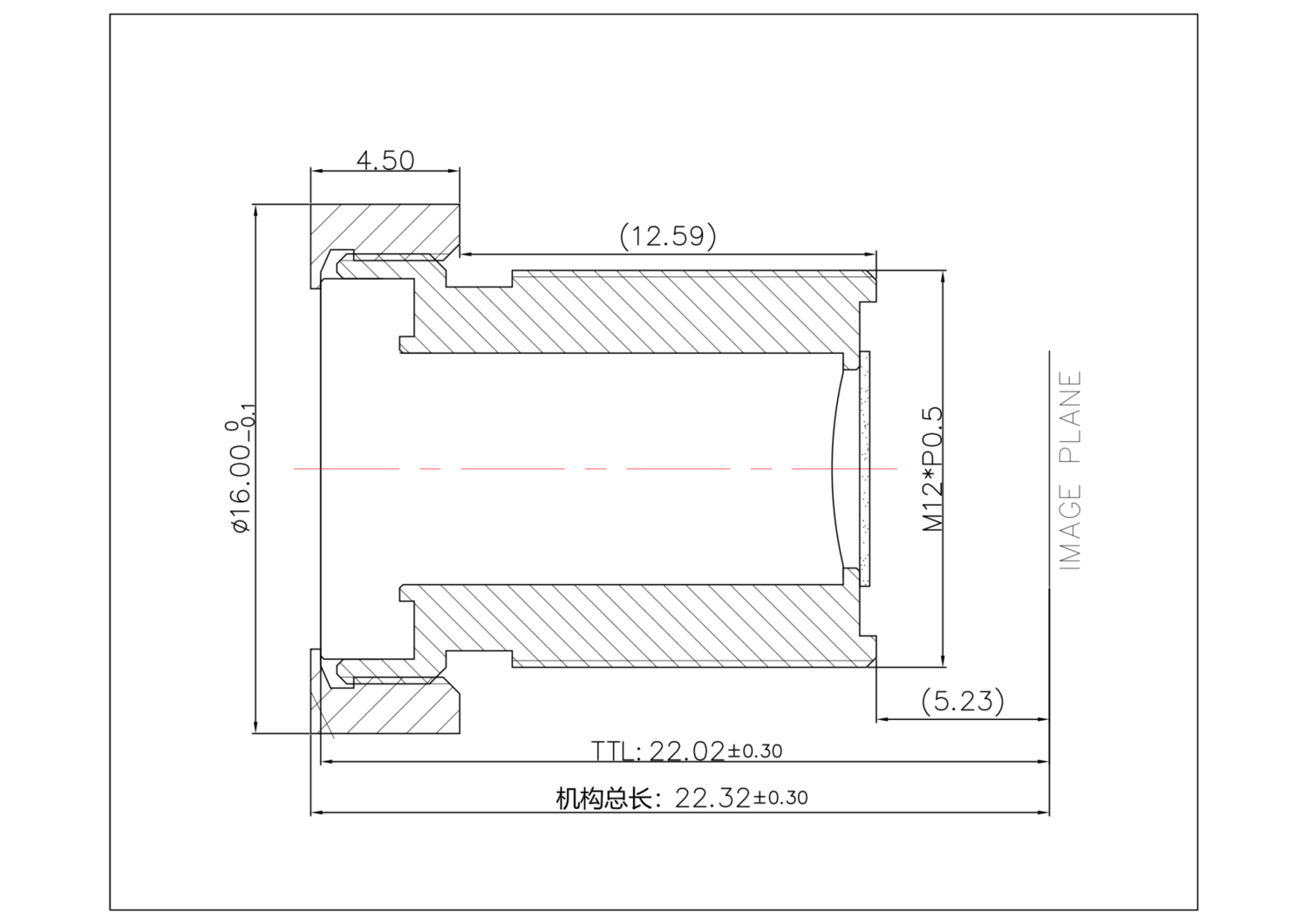

| 14 | Lens barrel size | Ø14.0mm(front end)
M12mm(back end mount) |
