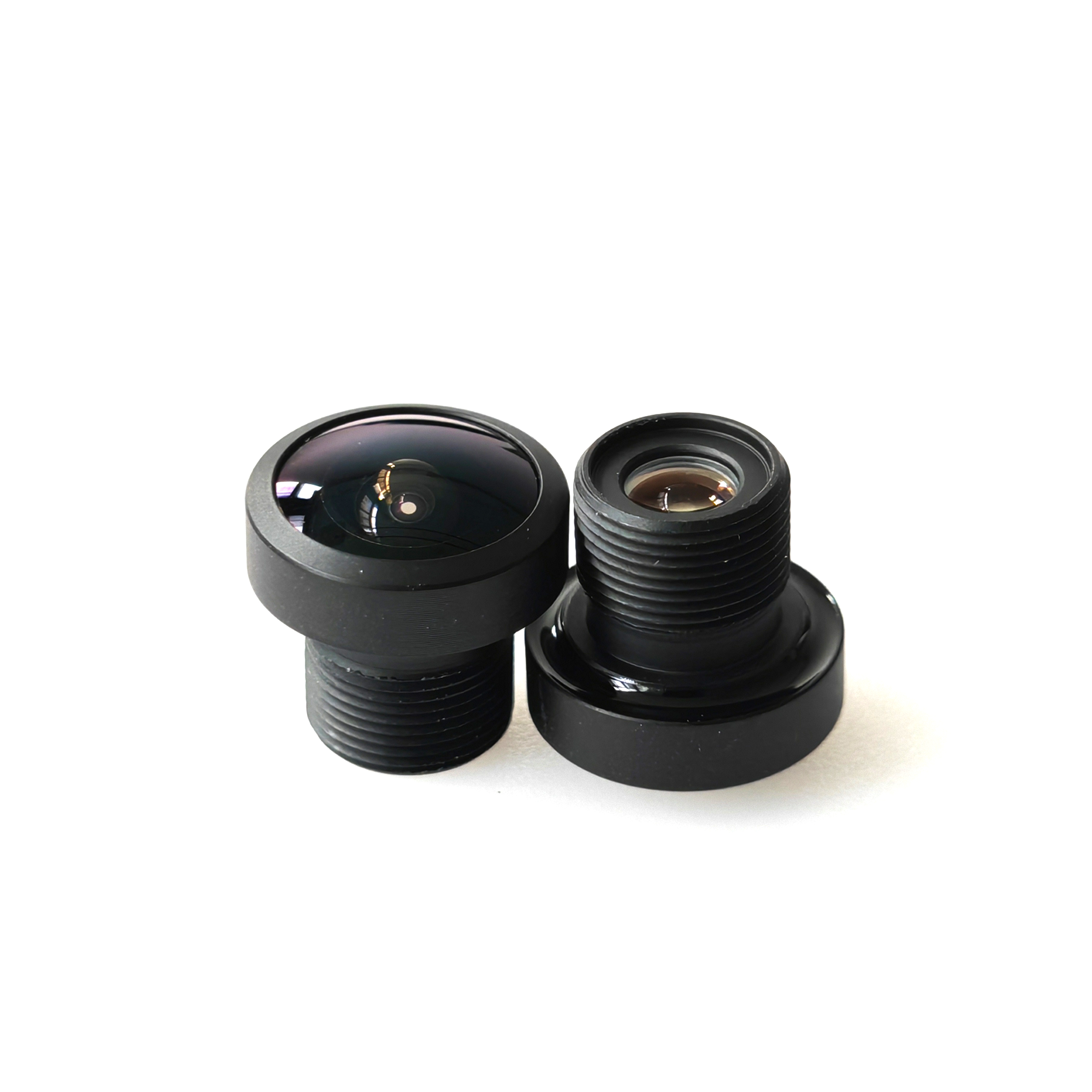

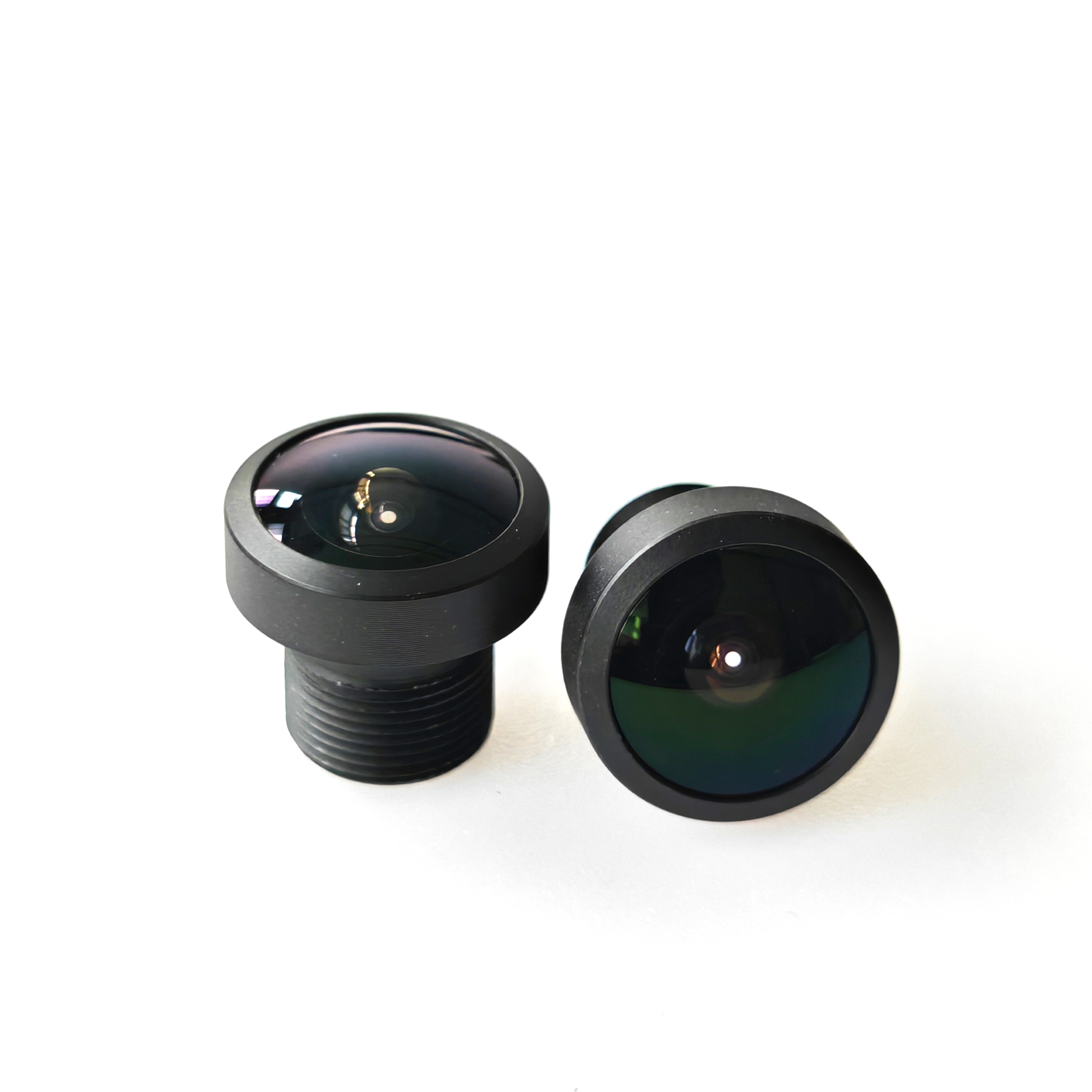

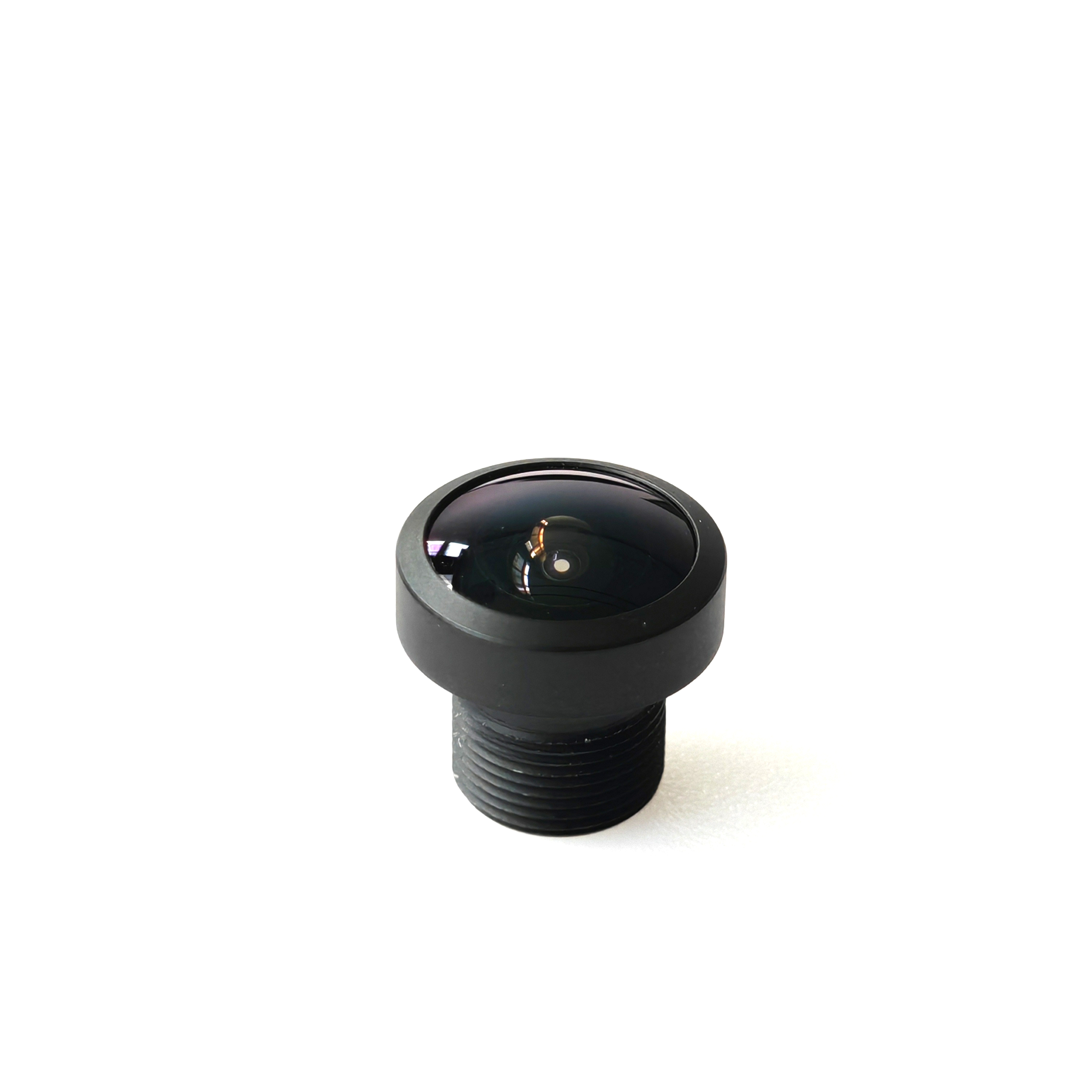

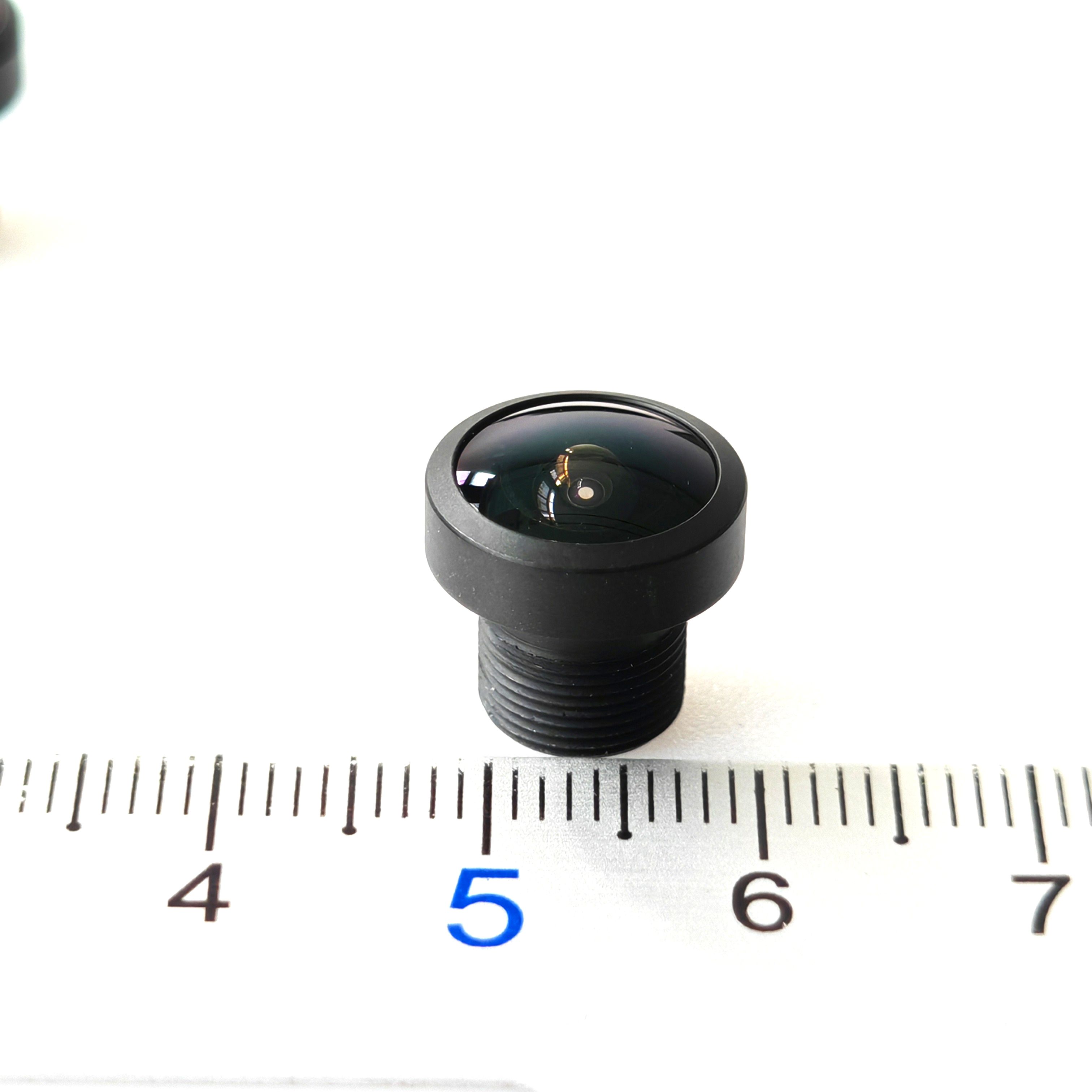

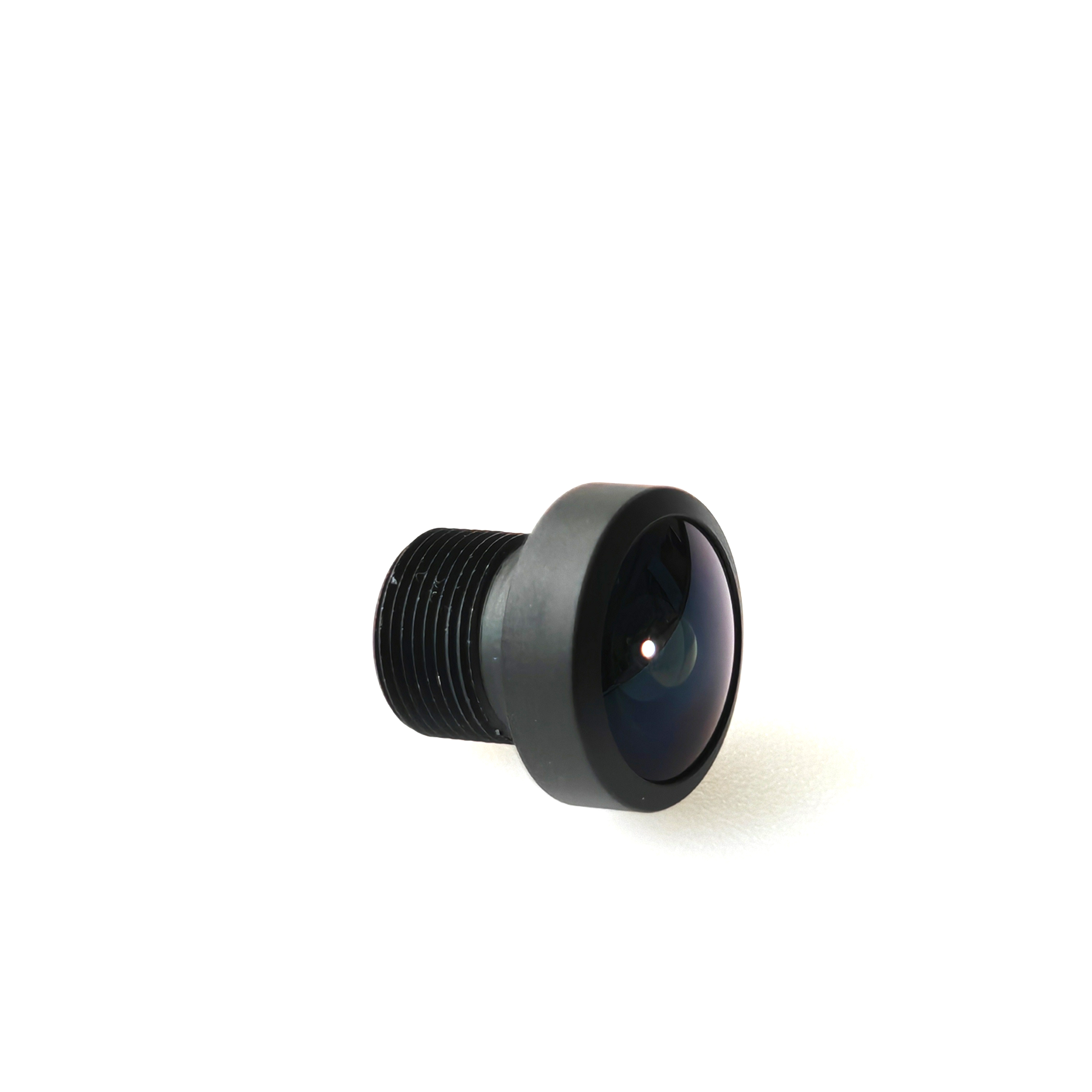

3008 Series M8 Interface Car Baby Camera AVM Lens
AVM camera lenses were originally used in the surround view system of cars, providing panoramic images around the vehicle to help drivers park and reverse more
safely. Applying this technology to car baby cameras can bring the following advantages:
1. Wider monitoring range
All-round monitoring: Compared with traditional car baby monitors, surround view cameras can provide 360-degree monitoring of the baby compartment
without blind spots, allowing parents to have a more comprehensive understanding of the baby's condition.
Avoid blind spots: Traditional cameras may have monitoring blind spots, while surround view cameras can eliminate these blind spots to ensure the safety of
the baby.
2. Clearer image quality
High resolution: Surround view cameras usually use high-resolution image sensors, which can provide clearer and more detailed images, allowing parents to see
the baby's expressions and movements more clearly.
Better performance in low light: Surround view cameras can also provide better imaging effects in low light environments, and parents can clearly see the baby
even when the light in the car is dim.
3. Richer functions
Digital zoom: With the digital zoom function, parents can enlarge the image and observe the details of the baby.
Image enhancement: Some surround view cameras also have image enhancement function, which can improve the contrast and clarity of the image.
Night vision function: Some surround view cameras are equipped with infrared night vision function, which can see the baby clearly even in a completely dark
environment.
4. Smarter application
Motion tracking: The surround view camera can realize the motion tracking function, always aiming the lens at the baby to prevent the baby from leaving the
monitoring range.
Crying detection: Through sound recognition technology, the camera can detect the baby's crying and remind parents in time.
Temperature monitoring: Some advanced surround view cameras also have temperature monitoring function, which can monitor the temperature in the car in
real time to ensure that the baby is in a comfortable environment.
Application scenario
Long-distance travel: During long-distance travel, parents can check the baby's condition through the mobile phone APP anytime and anywhere to ensure the
baby's safety and comfort.
Pick up children: During the process of picking up children, parents can observe the baby's condition in the car through the camera and detect abnormalities in time.
Home use: The surround view camera can also be used as a home baby monitor to provide more comprehensive monitoring.

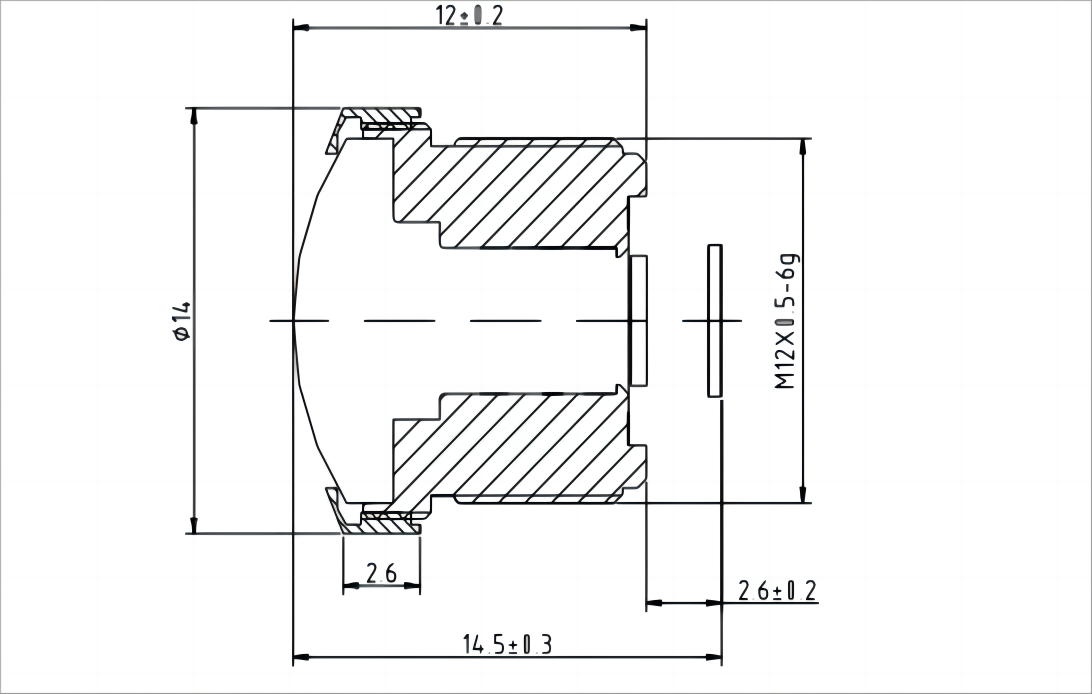

| 1.Model:OKS-3008-M8-A2 |
| 2.Optical Specifications |
| NO. | Items | Description |
| 1 | Focal-Length | 1.57mm±0.5mm |
| 2 | F/No. | F2.0±5% |
| 3 | OpticalBack Focal Length | 3.58mm±0.1 |
| 4 | Mechanical Back Focal Length | 2.57mm±0.1 |
| 5 | MAX Image circle | θ4.98 |
| 6 | Lens structure | 6G+IR |
| 7 | Mount | M12*0.5 |
| 8 | FOV | sensor | H | V | D |
| 1/2.7" | 210° | 123° | 210° |
| 9 | IR Filter | 650nm |
| 10 | TTL | 14.54MM |
| 11 | Waterproof Level | IP68 |
| 12 | Working Temperature | -40℃~+85℃ |
