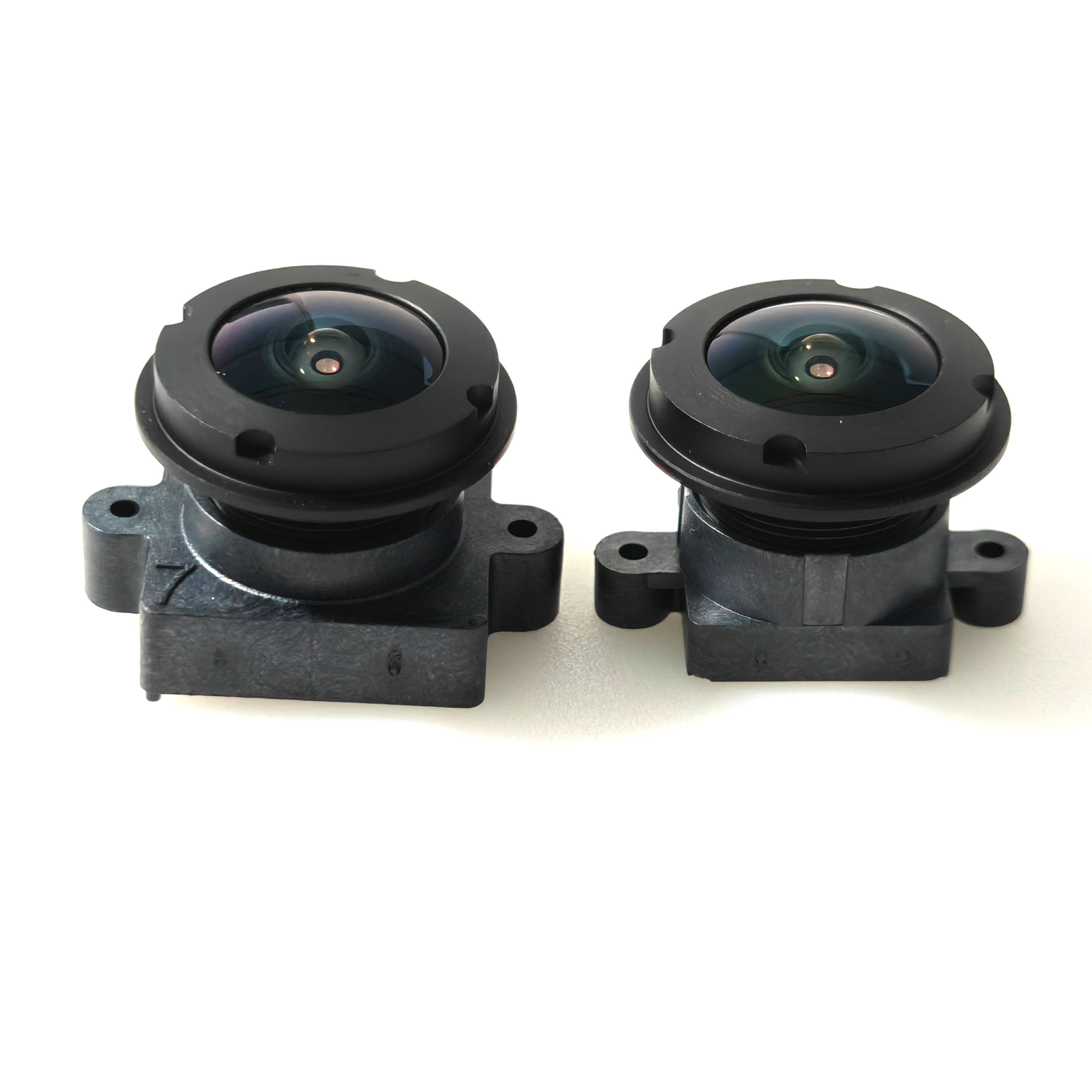

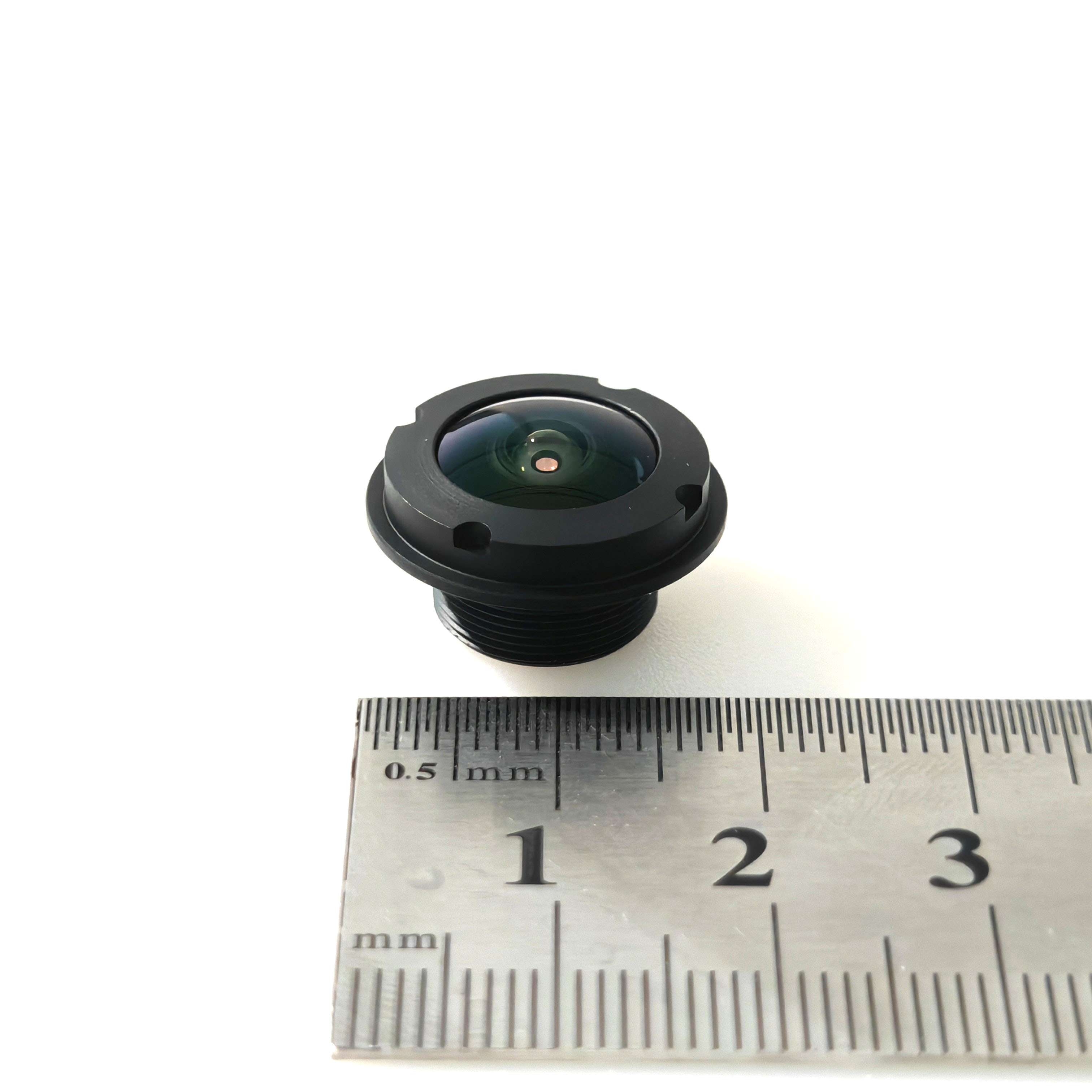

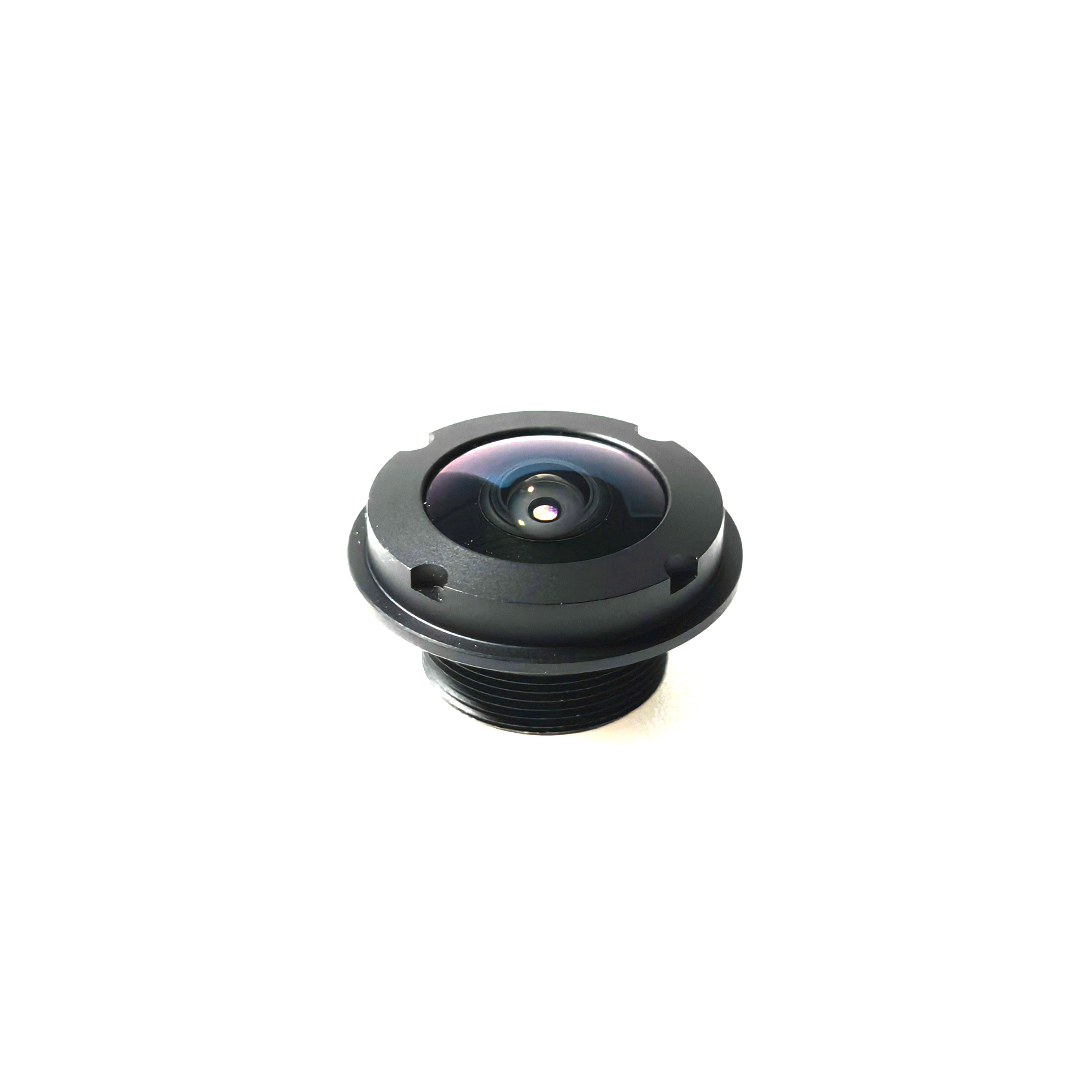

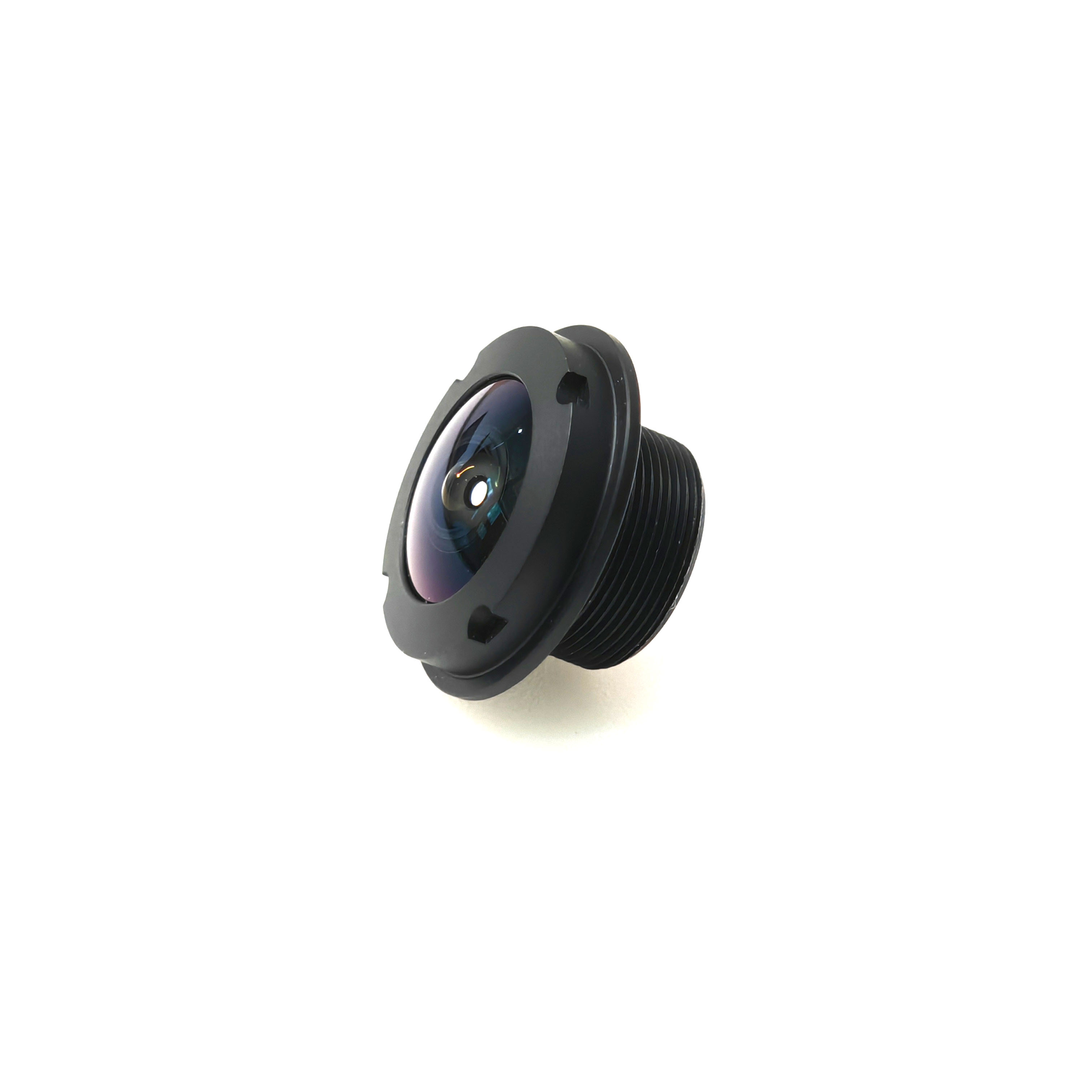

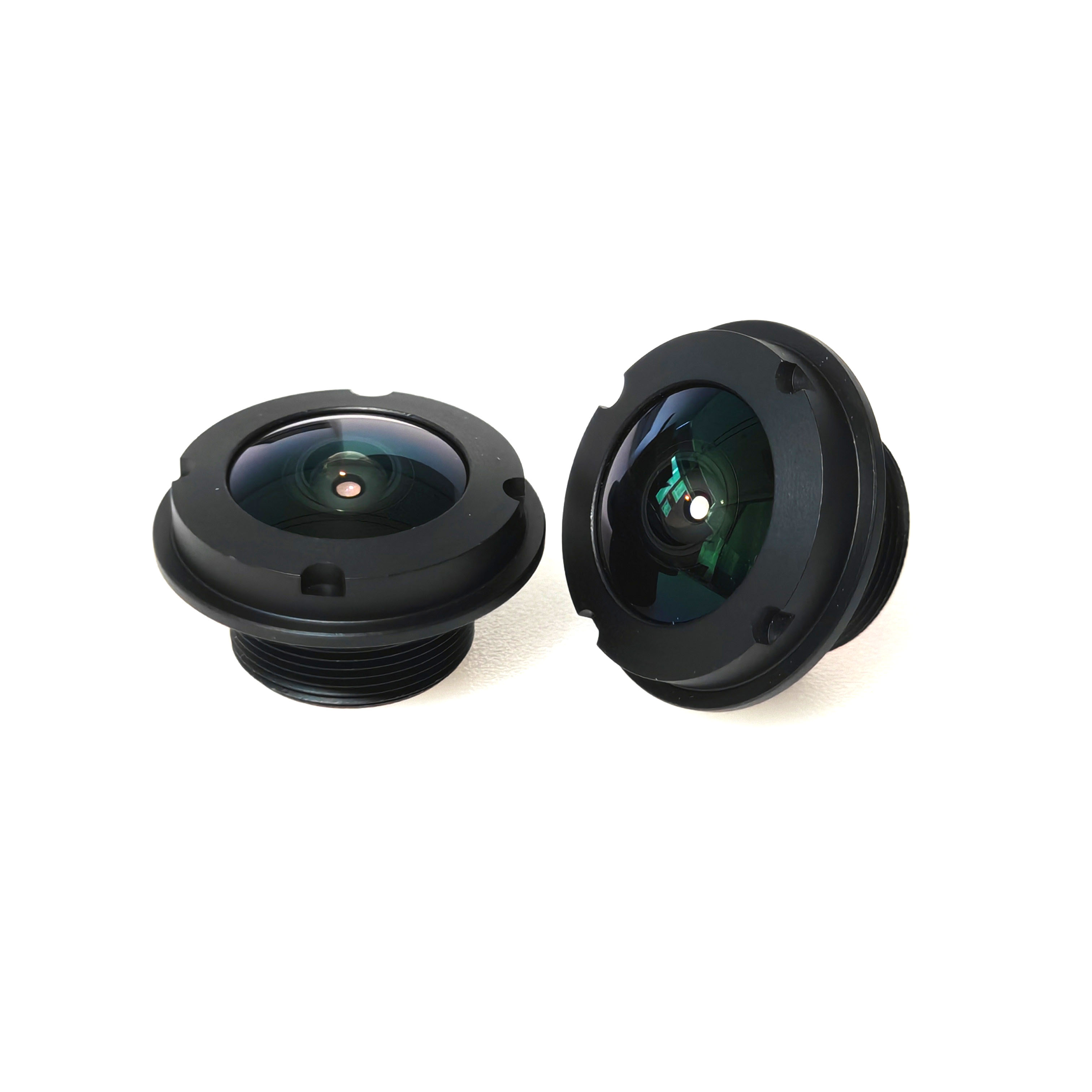

3056 Series 5MP Solar Video Surveillance Doorbell Camera Lens
How solar video doorbells camera work
Solar video doorbells usually include the following parts:
Solar panels: Convert solar energy into electrical energy.
Battery: Stores electrical energy converted from solar energy for use by the video doorbell on cloudy days or at night.
Controller: Controls the operation of the entire system, including charging, discharging, switching on and off, etc.
Camera, microphone, speaker, etc.: Realize visual intercom function.
Advantages of Solar Video Doorbell
All-weather operation: The battery ensures the normal operation of the video doorbell even when there is no sunlight.
Flexible installation location: Since there is no constraint of power cords, the solar video doorbell can be installed in various locations and is not restricted by indoor wiring.
Safe and reliable: The solar video doorbell has a lower voltage, higher safety, and will not cause harm to the human body.
Things to note
Sunlight conditions: The efficiency of solar panels is closely related to sunlight conditions, so the installation location should be chosen in a sunny place.
Battery capacity: The size of the battery capacity determines how long the video doorbell can last without sunlight.
Functional configuration: The functional configuration of solar video doorbells of different brands will be different. You should choose according to your own needs when purchasing.
Future development trends
With the continuous advancement of solar technology, the functions of solar video doorbells will become more and more powerful, such as:
Higher resolution: Provides clearer video images.
Smarter algorithm: realizes functions such as face recognition and motion detection.
Stronger connectivity: Supports more smart home device linkages.

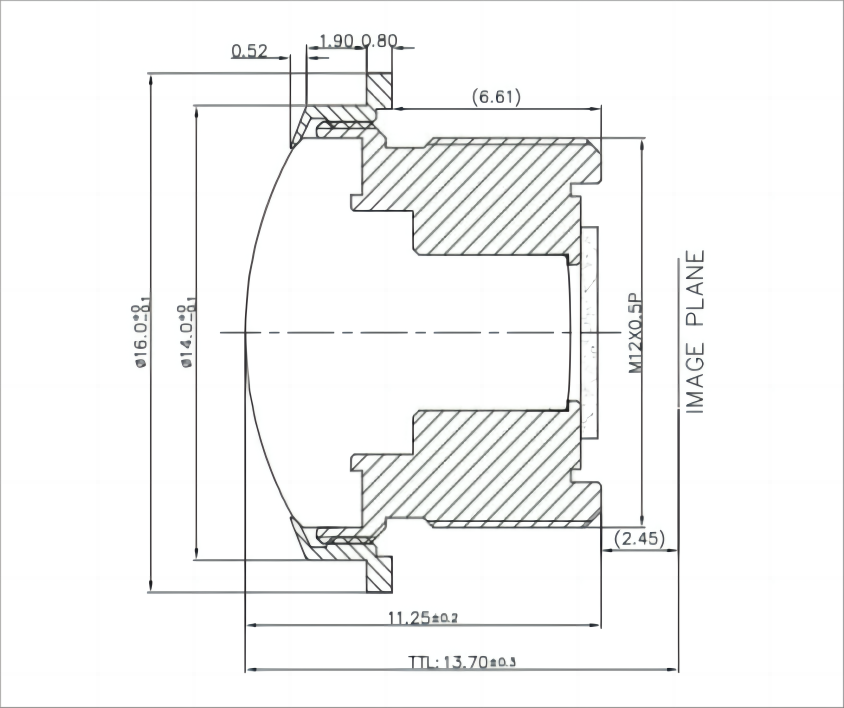

| 1.Model：OKS-3056-A84 |
| 2. Optical Specifications |
| NO. | Items | Description |
| 1 | Focal-Length | 1.5mm±0.5mm |
| 2 | F/No. | F1.6±5% |
| 3 | OpticalBack Focal Length | 3.61mm±0.1 |
| 4 | Mechanical Back Focal Length | 2.45mm±0.1 |
| 5 | MAX Image circle | θ4.65 |
| 6 | Lens structure | 6G+IR |
| 7 | Mount | M12*0.5 |
| 8 | FOV | sensor | H | V | D |
| 1/2.7" | 210° | 130° | 210° |
| 9 | IR Filter | 650nm |
| 10 | TTL | 13.70MM |
| 11 | Waterproof Level | IP68 |
| 12 | Working Temperature | -40℃~+85℃ |
