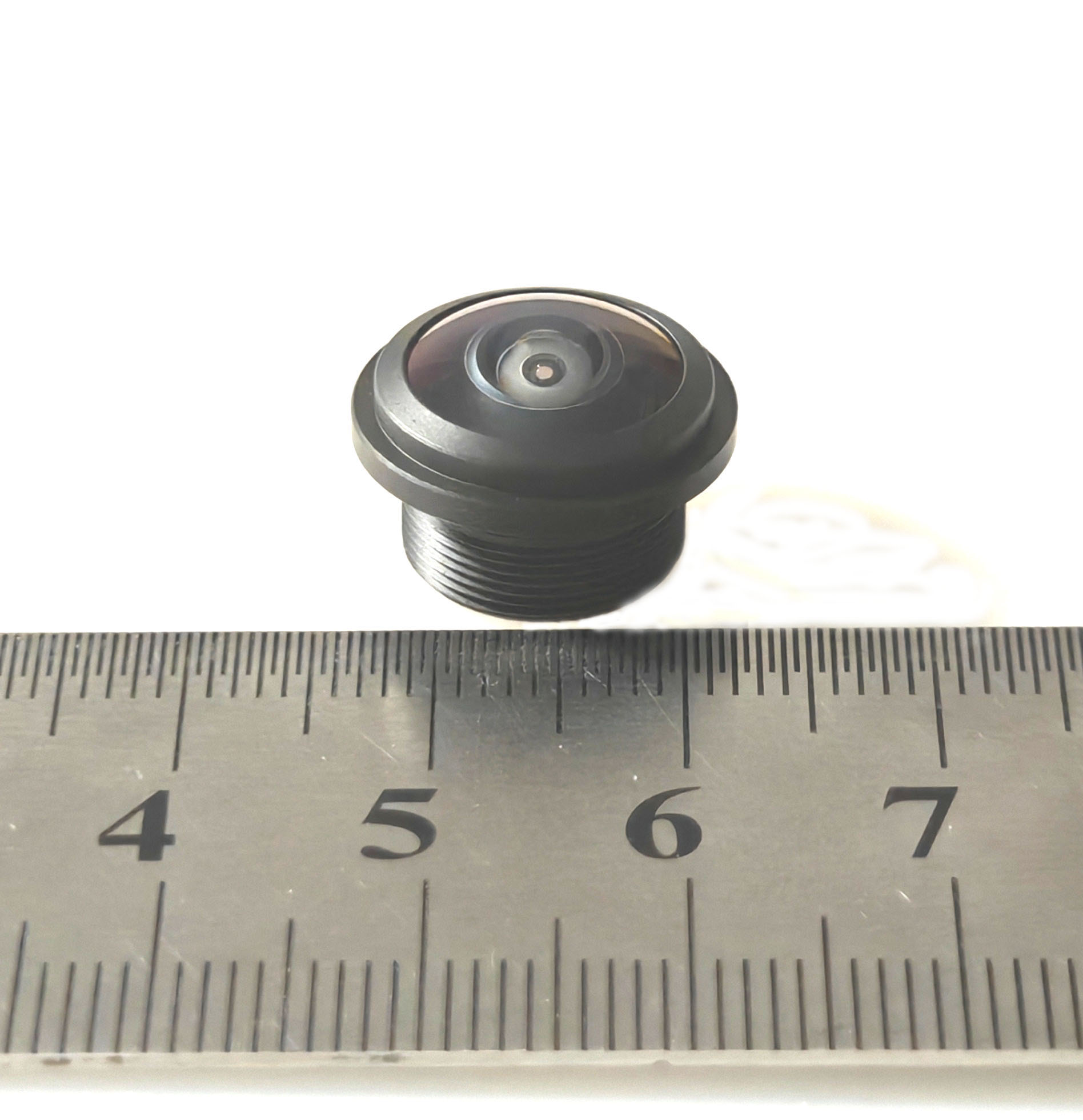

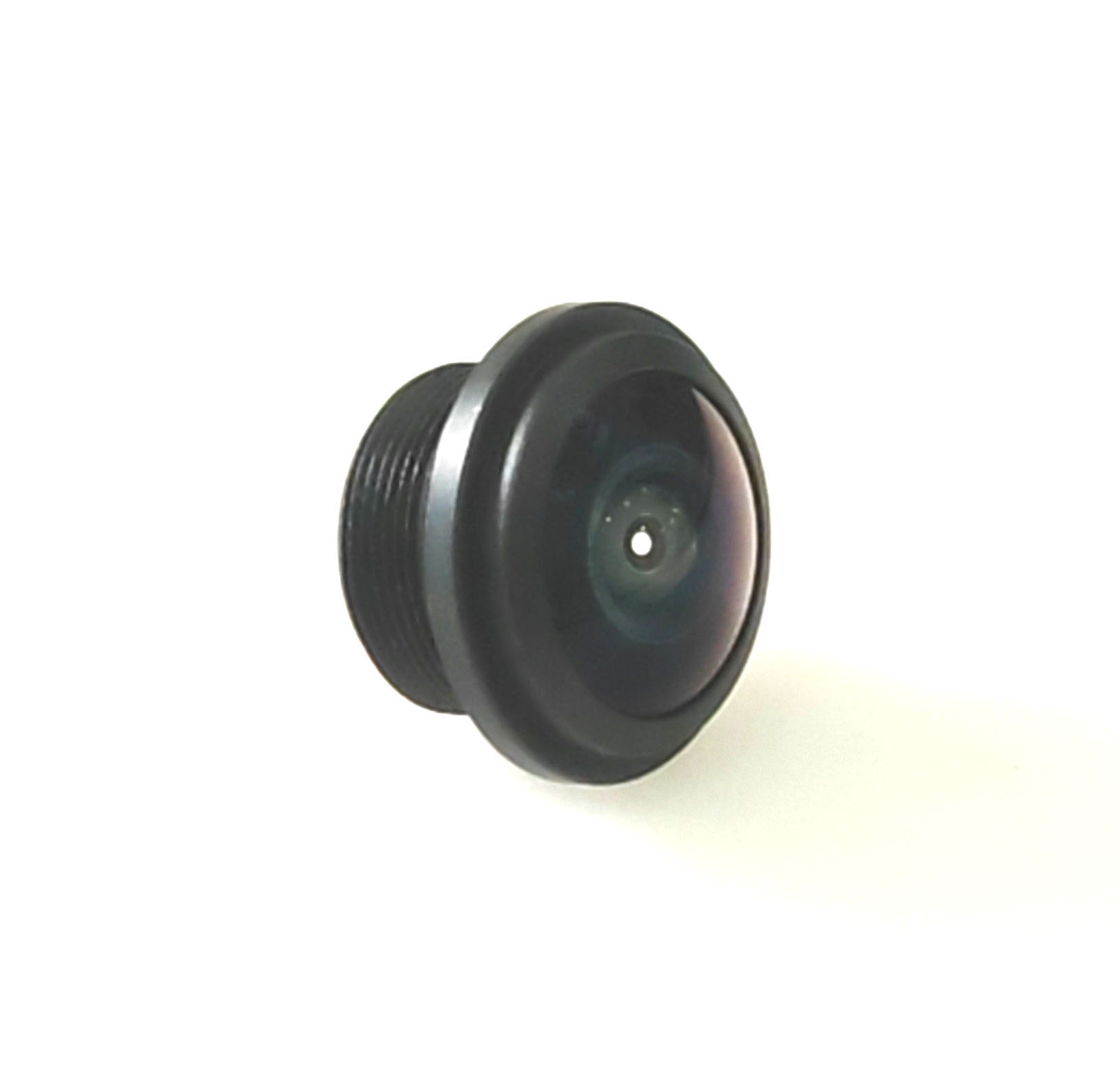

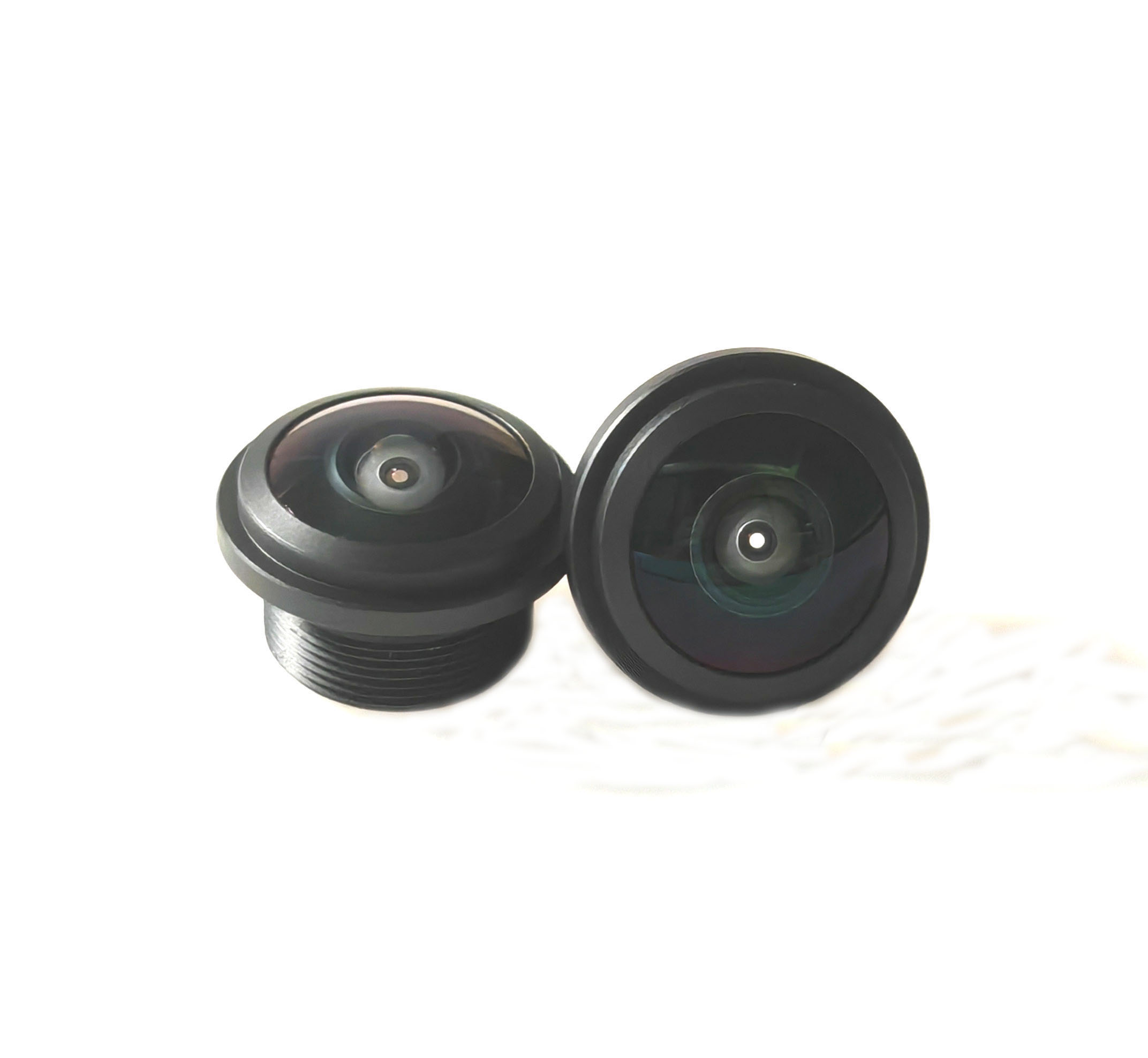

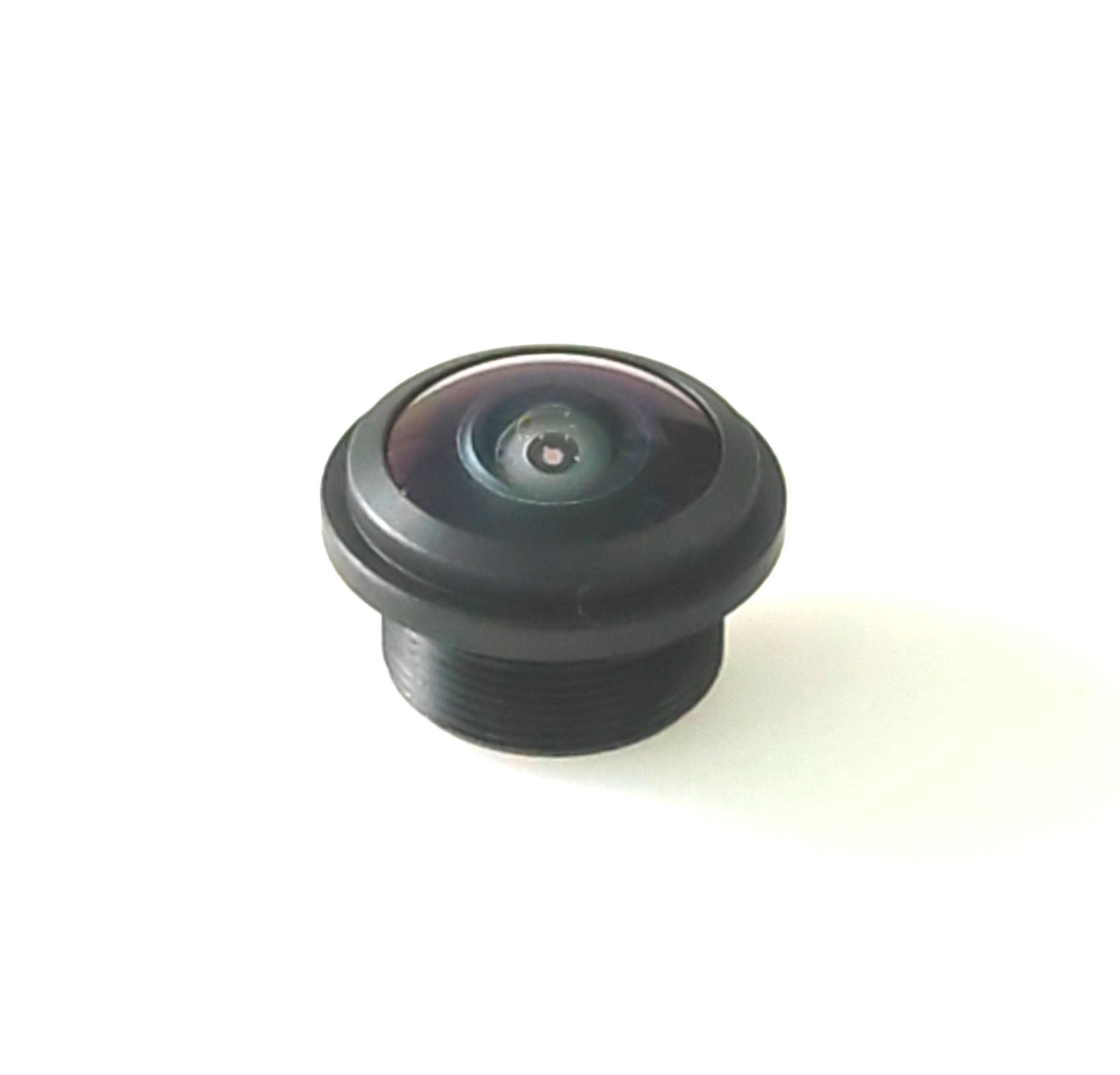

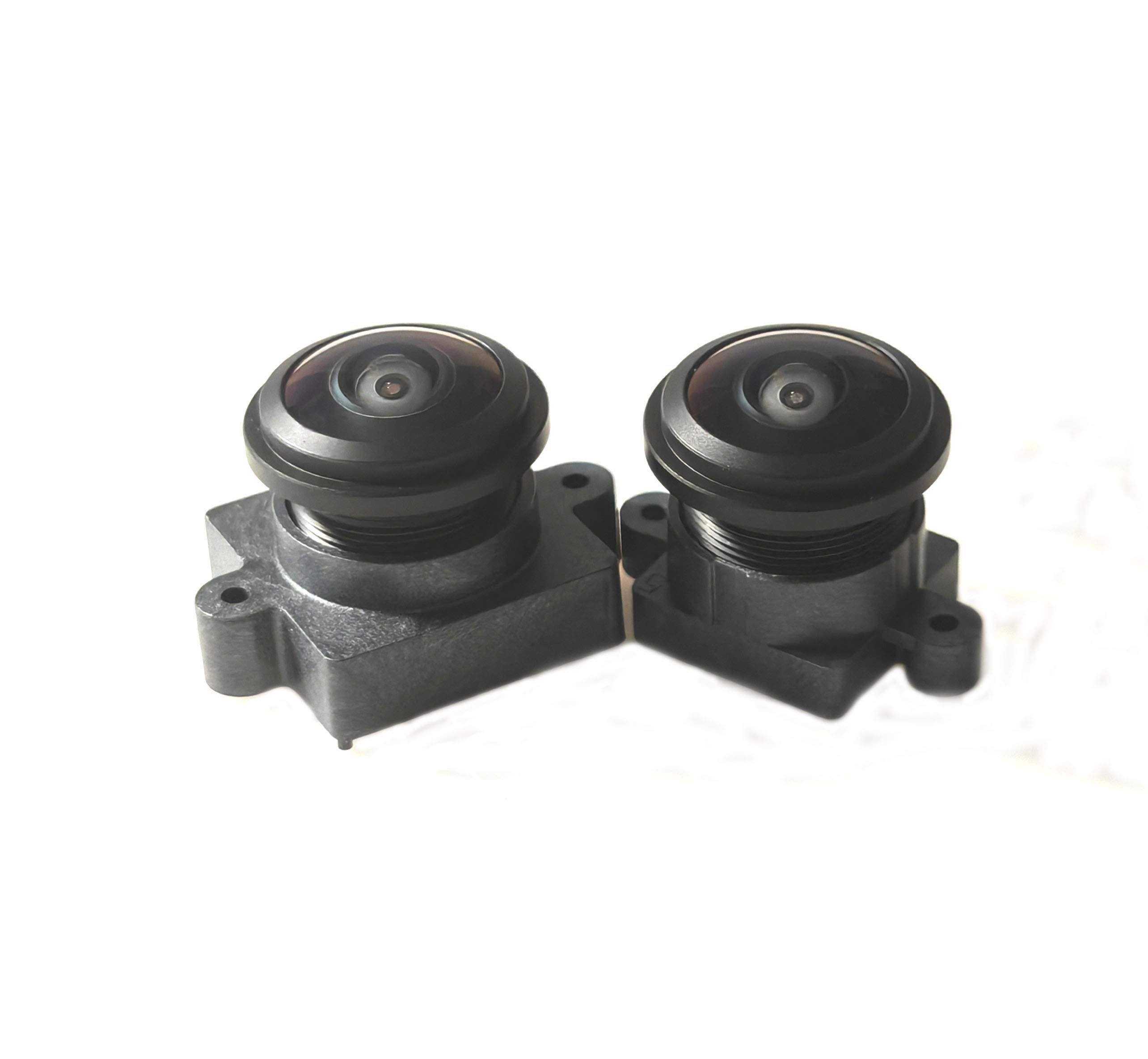

3001 Series Wide Angle 3MP Ring Doorbell Camera System Lens
Why do doorbell cameras choose wide-angle lenses?
The main reasons why doorbell cameras generally choose wide-angle lenses are:
Expand the monitoring range: The wide-angle lens can cover a wider field of view, giving you a more comprehensive view of what is happening at the door, such as
packages, visitors, or even the corner of the porch.
Capture more details: A wide-angle lens can capture more details, such as visitors’ facial expressions, clothing features, and items at the door.
Reduce blind spots: The wide-angle lens can reduce the blind spots in the porch, ensuring that there is no area that cannot be monitored.
Why not choose a telephoto lens?
The viewing angle is too narrow: The telephoto lens has a narrow viewing angle and can only see a small area in front of the door, making it easy to miss important
information.
Distance limitation: Telephoto lenses have higher distance requirements. If visitors are too far away from the door, they may not be able to capture the image clearly.
Summarize
For doorbell cameras, a wide-angle lens is a more suitable choice. It can provide more comprehensive monitoring, help you better understand the situation at the door
and improve home security.

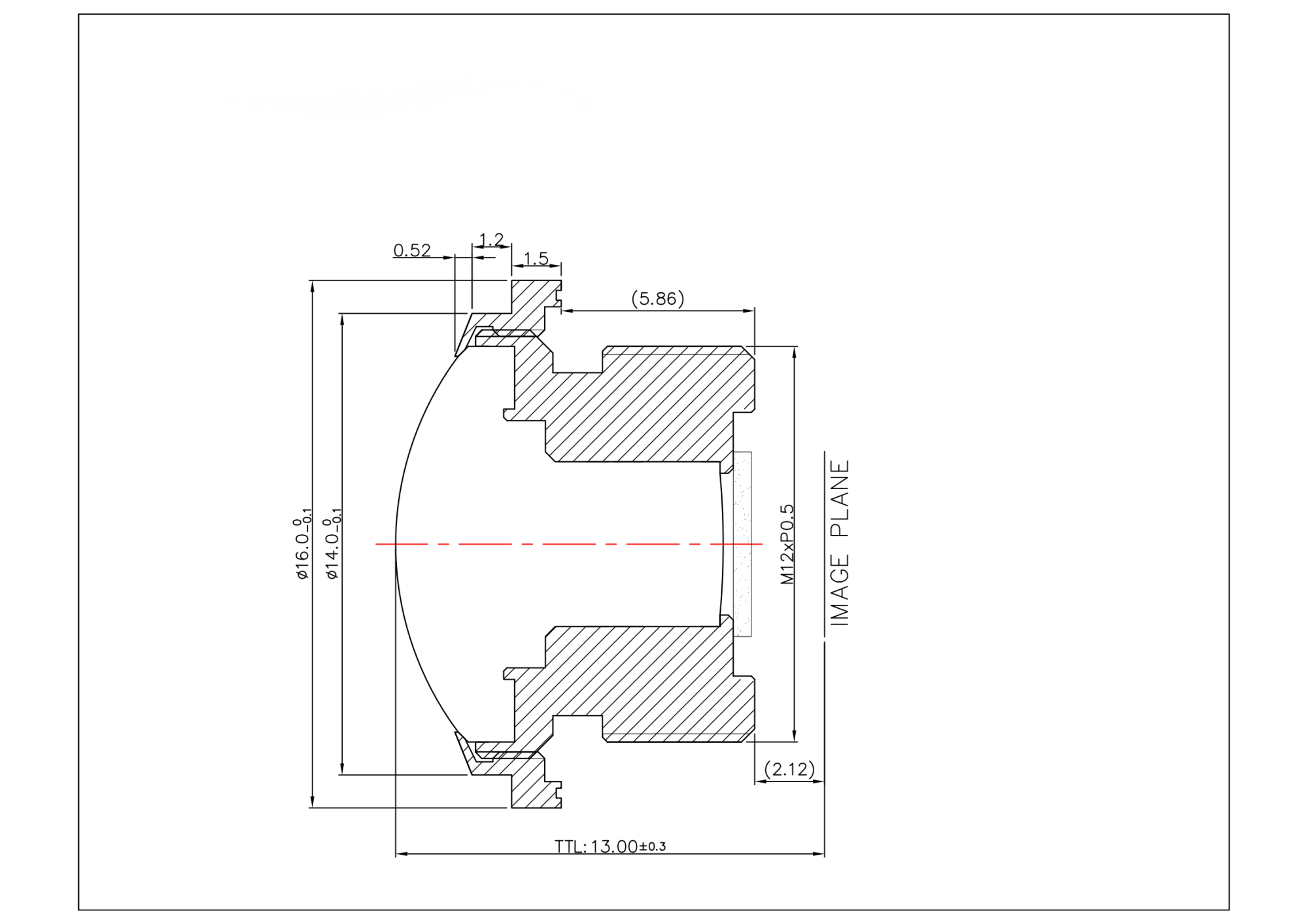

| Model:OKS-3001-A68-650 |
| Optical Specification |
| NO. | Items | Description |
| 1 | Focal-Length | 1.4mm±0.5mm |
| 2 | F/No. | F2.0±5% |
| 3 | OpticalBack Focal Length | 3.06mm±0.1 |
| 4 | Mechanical Back Focal Length | 2.16mm±0.1 |
| 5 | (MAX Image Circle | θ4.1 |
| 6 | Lens Structure | 6Glass+IR |
| 7 | Mount Type | M12*0.5 |
| 8 | FOV | Sensor | H | V | D |
| 1/2.7" | 230° | 148° | 230° |
| 1/2.8" | 206° | 142° | 206° |
| 1/2.9" | 200° | 120° | 200° |
| 1/3" | 184° | 95° | 184° |
| 9 | IR Filter | 650nm |
| 10 | TTL | 13.0MM |
| 11 | Waterproof Level | IP68 |
| 12 | Working Temperature | -40℃~+85℃ |
