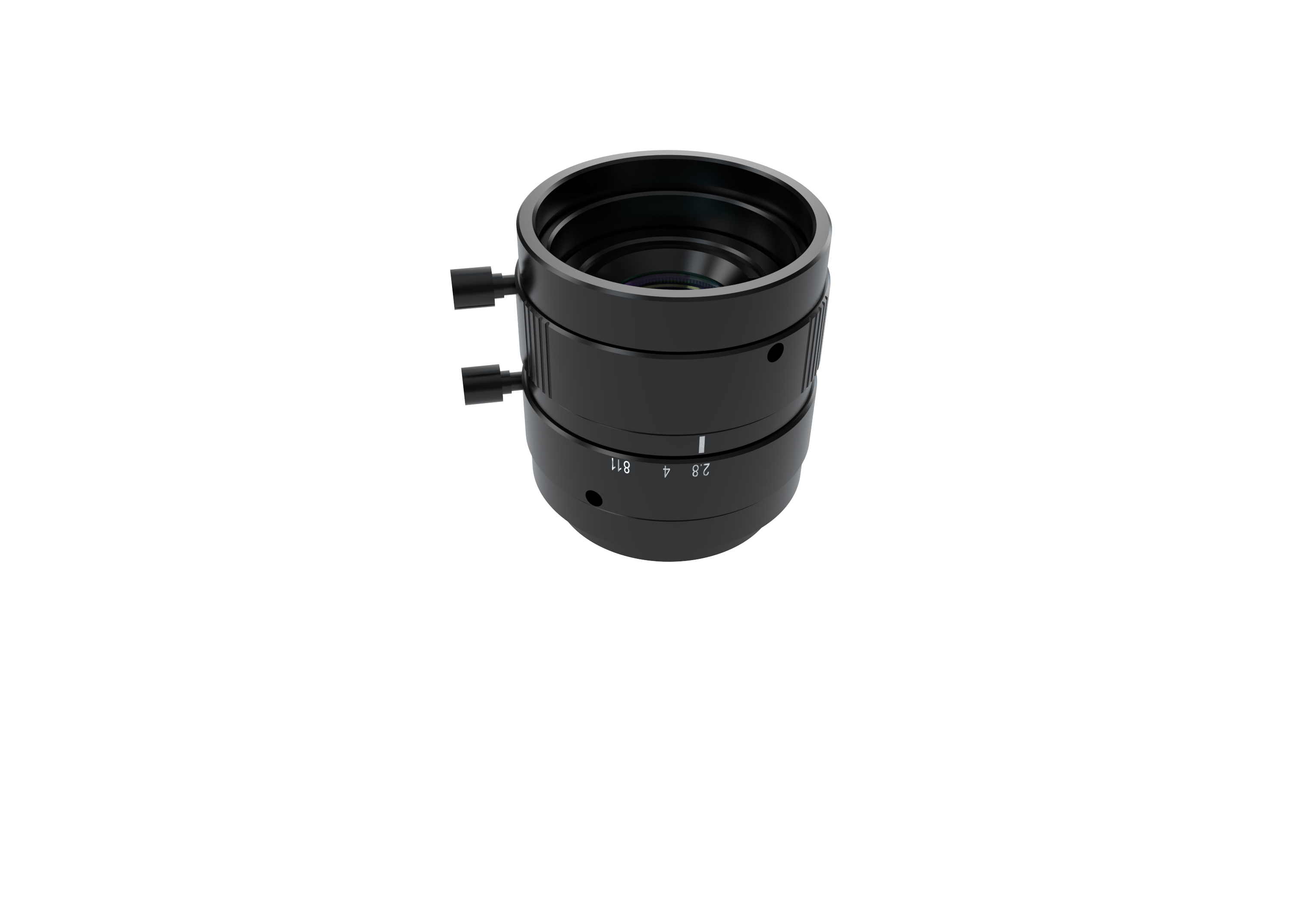

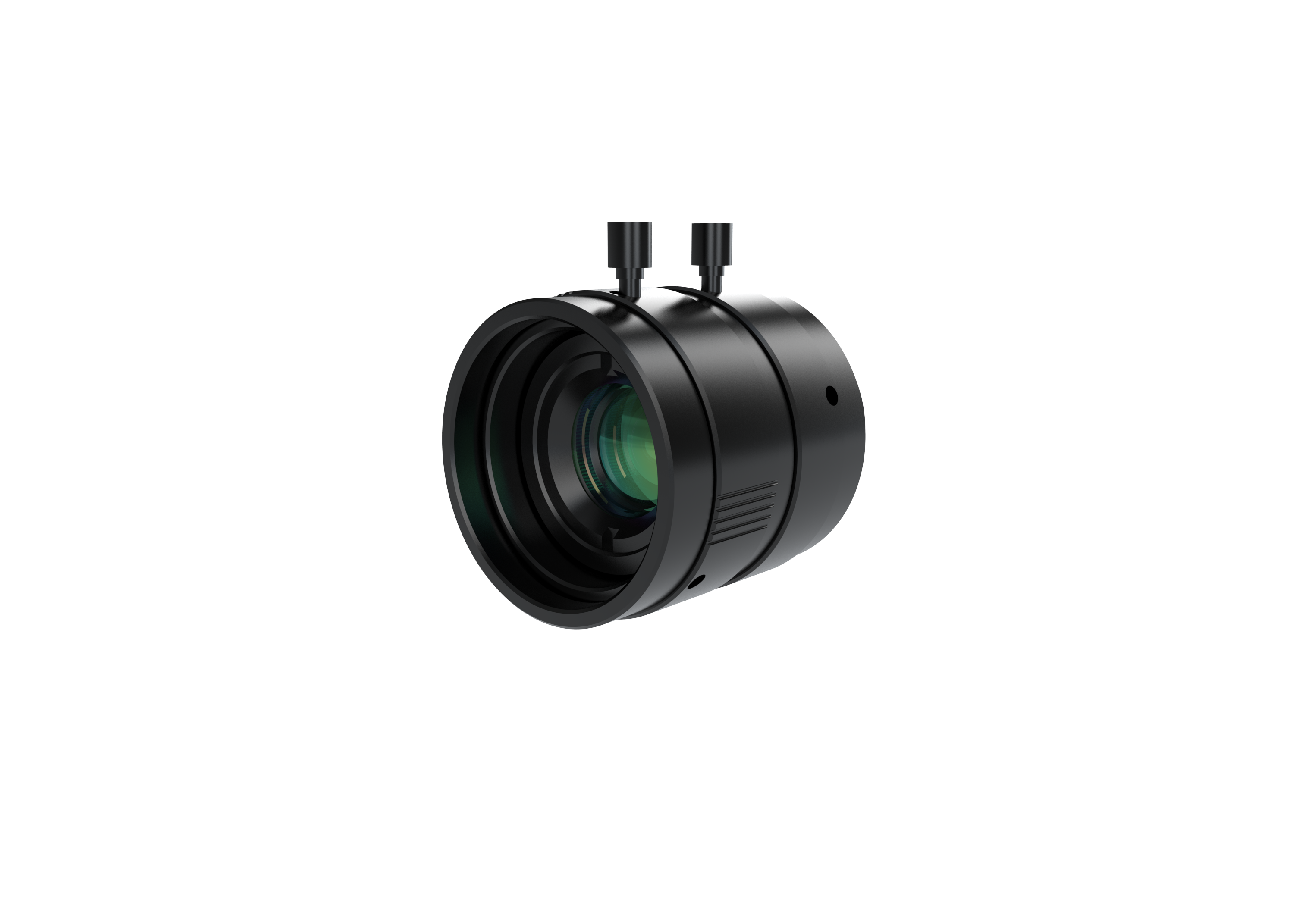

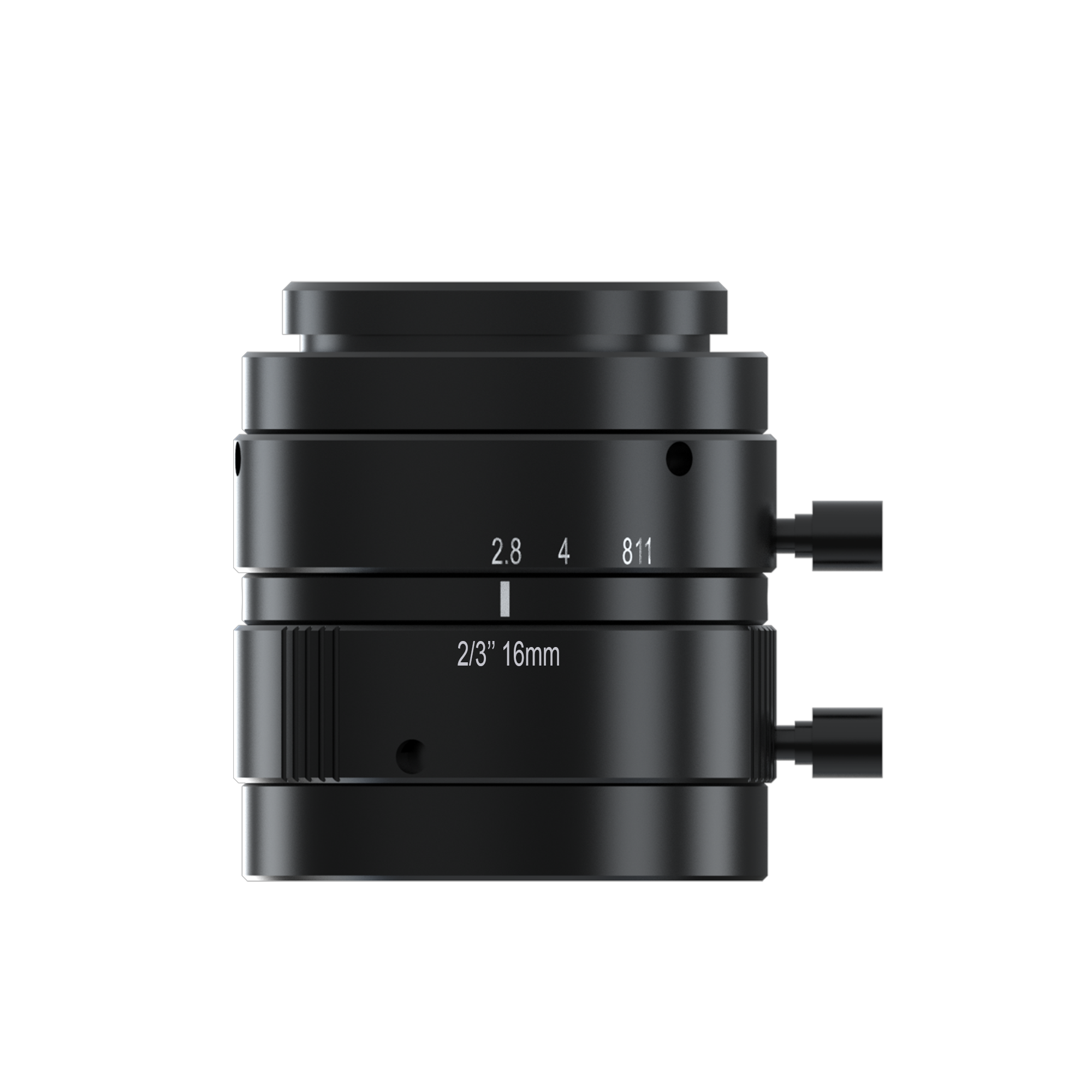

3216 Series 12MP 2/3 Inch Machine Vision Test Lens

3216 Series 12MP 2/3 Inch Machine Vision Test Lens

How to Choose the Right Machine Vision Lens Aperture

Understanding Aperture and Its Impact

The aperture of a machine vision lens controls the amount of light that enters the lens. It's represented by the f-number, where a lower f-number indicates a larger aperture.

Key Factors to Consider:

1. Lighting Conditions:

   • Low-Light Environments: A larger aperture (lower f-number) allows more light to enter the lens, improving image quality in dimly lit conditions. However, this can reduce the depth of field.

   • Well-Lit Environments: A smaller aperture (higher f-number) can be used to increase the depth of field, ensuring that a larger area of the object is in focus.

2. Depth of Field (DOF):

   • Shallow DOF: A larger aperture (lower f-number) results in a shallower depth of field, where only a narrow range of distances is in focus. This can be useful for isolating specific details.

   • Greater DOF: A smaller aperture (higher f-number) increases the depth of field, ensuring that a wider range of distances is in focus. This is beneficial for applications that require precise measurements or inspections of objects with varying depths.

3. Image Quality:

   • Optimal Aperture Range: Most lenses perform best at a specific aperture range, often around f/5.6 to f/8.

   • Diffraction: At very small apertures (high f-numbers), diffraction can occur, reducing image sharpness.
