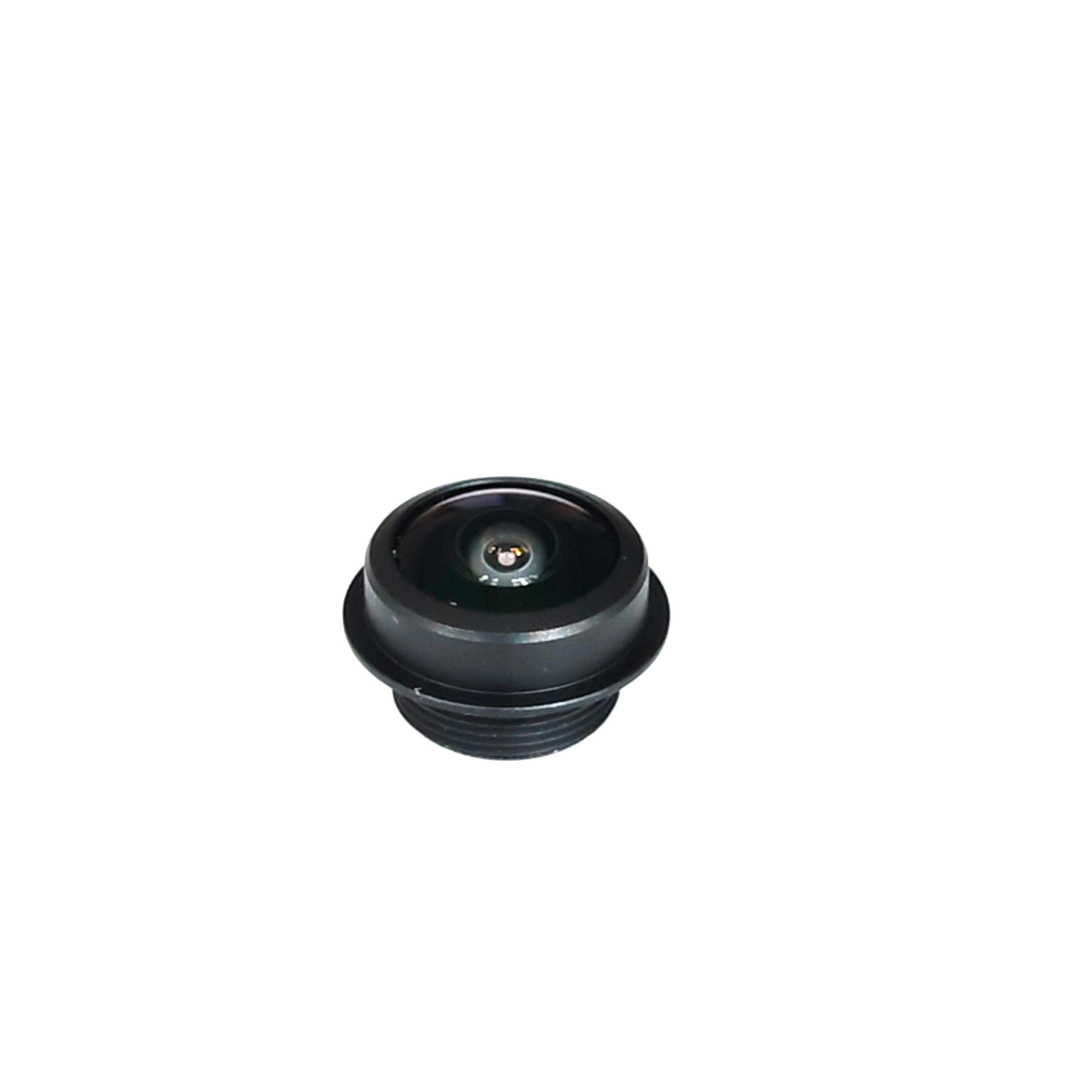

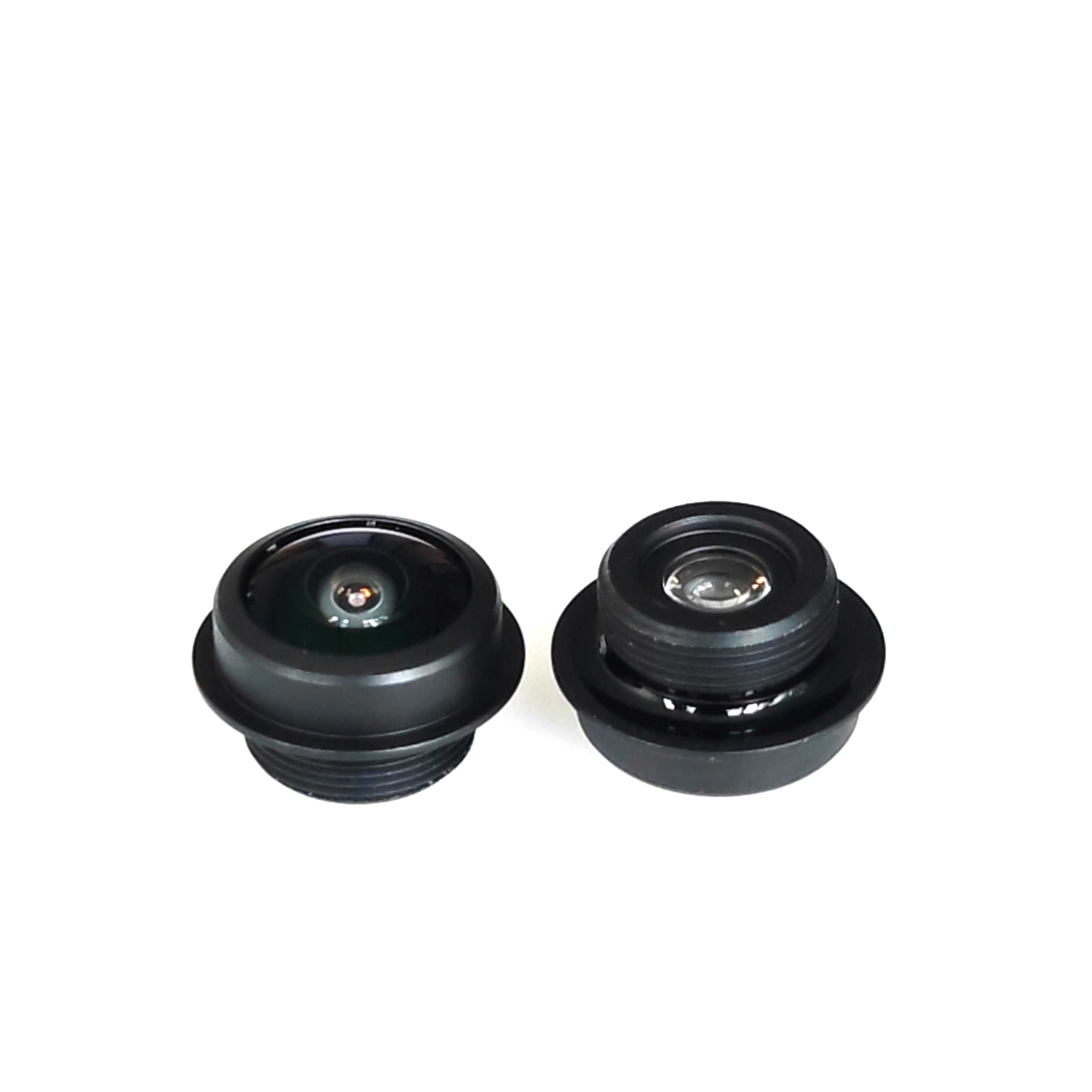

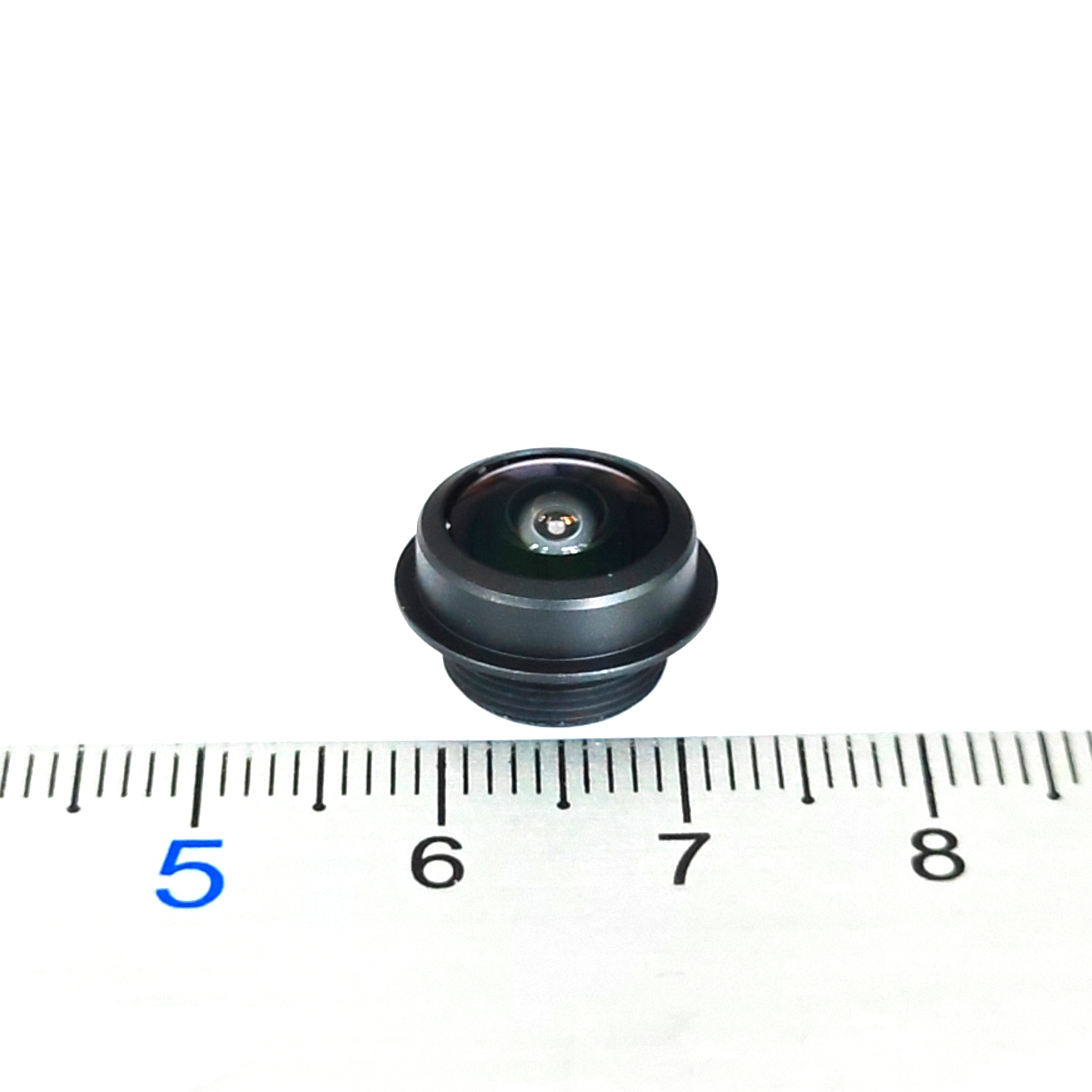

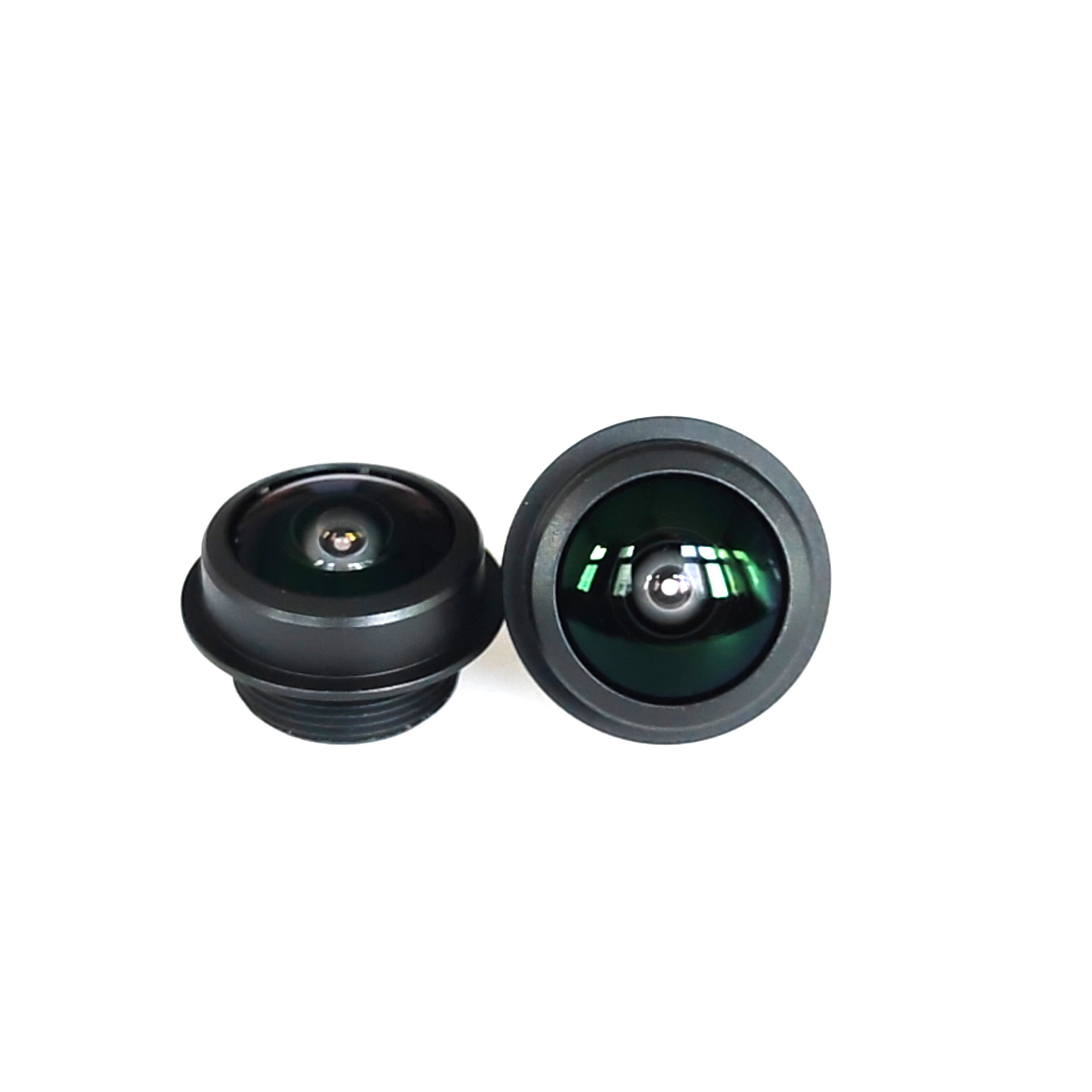

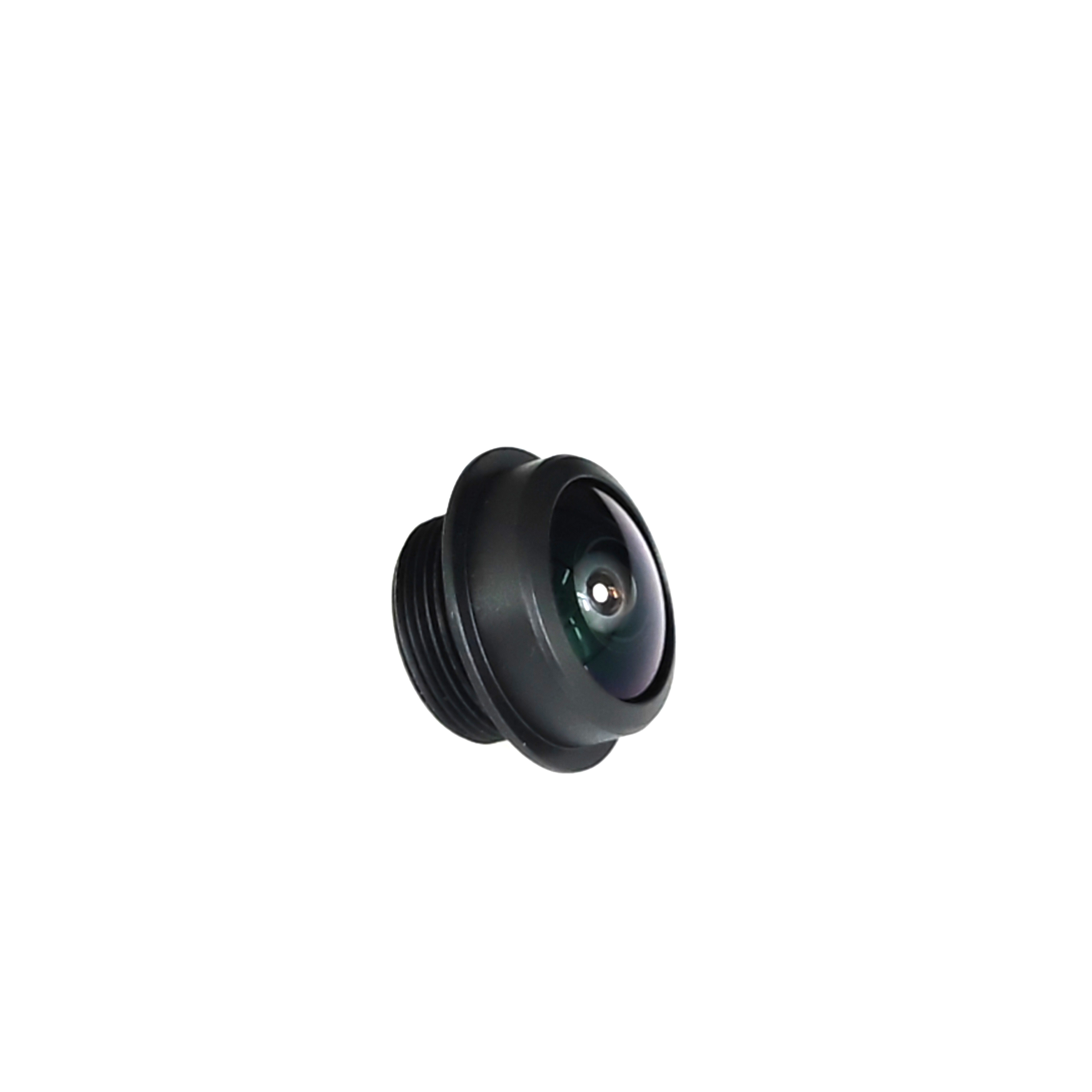

3007 Series 4MP HD Wide Angle Doorbell Camera Fisheye Lens
There are several main reasons for choosing fisheye lens for doorbell cameras:
1. Expand the field of view and reduce blind spots
Panoramic coverage: The fisheye lens can bring a wider area in front of the door into view, including both sides of the door, the ground, etc., thereby reducing blind spots and ensuring that every move of the visitor can be clearly captured.
Coping with visitors of different heights: Whether they are adults or children, they can be fully displayed on the screen for easy identification.
2. Improve security
Detect abnormalities earlier: A wider field of view helps detect abnormalities earlier, such as strangers wandering around, packages being stolen, etc.
Increase deterrence: Conspicuous cameras can play a certain deterrent role and reduce the possibility of intrusion by criminals.
3. Easy to install
Single camera coverage: One fisheye lens can replace multiple traditional cameras, simplifying the installation process and reducing costs.
Adapts to various door types: Whether it is a single-family home or an apartment, the fisheye lens adapts well to provide comprehensive surveillance.
4. Other advantages
Good night vision: Fisheye lenses usually have a larger amount of light and can provide clear images at night.
Distortion correction: Through image processing technology, the distortion of the fisheye lens can be effectively corrected to obtain a more realistic picture.

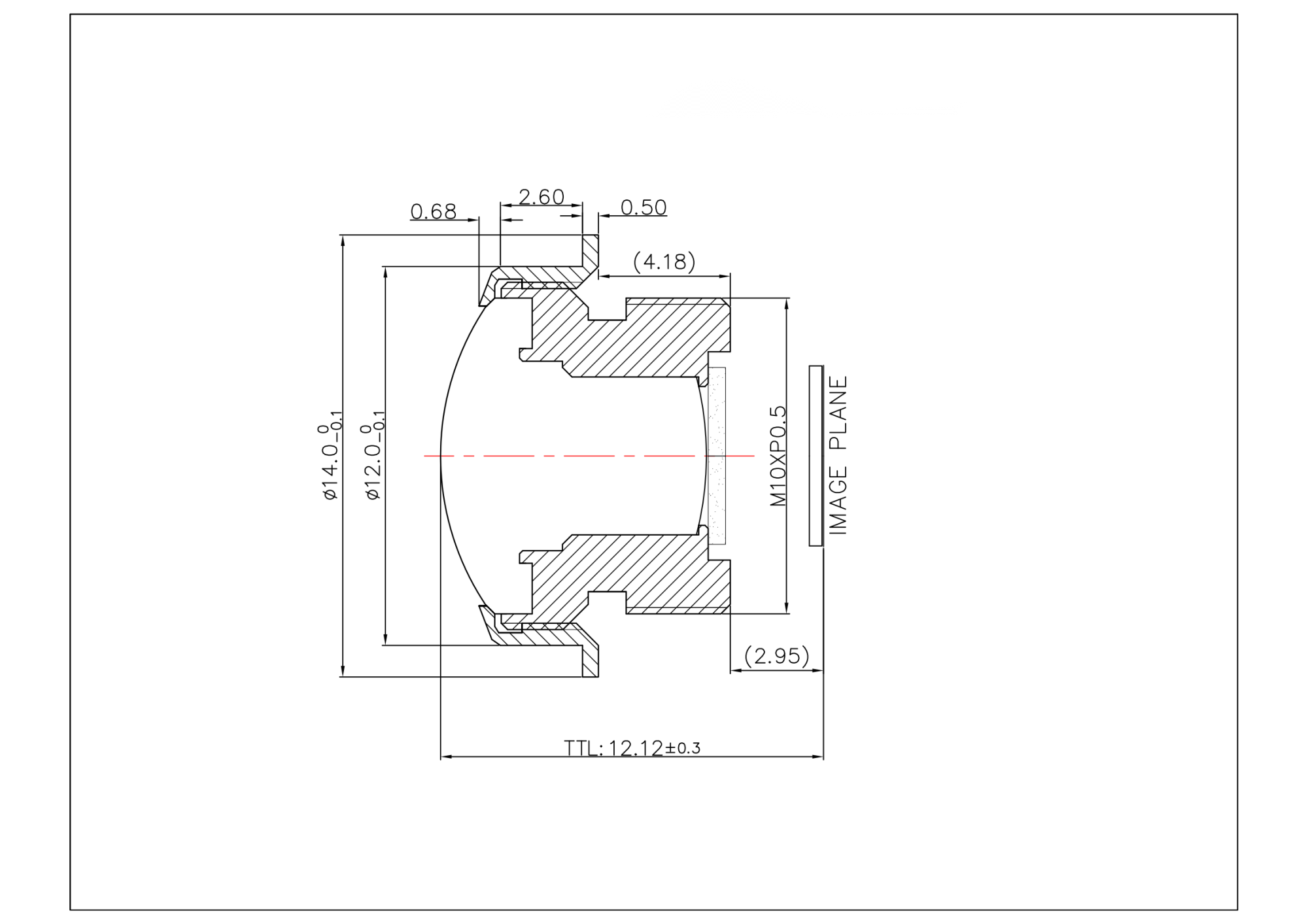

| Model:OKS-3007M10-A4(650 IR) |
| Optical Specifications |
| NO. | Items | Description |
| 1 | Focal-Length | 1.6mm±0.5mm |
| 2 | F/No. | F2.0±5% |
| 3 | OpticalBack Focal Length | 3.72mm±0.1 |
| 4 | Mechanical Back Focal Length | 2.96mm±0.1 |
| 5 | MAX Image Circle | θ5.7 |
| 6 | Lens Structure | 6Glass+IR |
| 7 | Mount Type | M12*0.5 |
| 8 | FOV | Sensor | H | V | D |
| 1/3.2" | 150° | 110° | 195° |
| 9 | IR Filter | 650nm |
| 10 | TTL | 12.12MM |
| 11 | Waterproof Level | IP68 |
| 12 | Working Temperature | -40℃~+85℃ |
